TRICON MINING EQUIPMENT PTY LTD

FEATURES
Manual folding head section as standard
Site Tow-bar for relocation
The hydraulic coupling as standard
Radial non-braking axle
Lagged head drum
Remote greasing to bearings
Galvanised Legs
Galvanised pivot plate
Skirted feed boot
Manual height adjustment
Advantages:
Reduce fuel consumption by up to 80%
Eliminate/reduce the need for wheel loader
Eliminate material double handling
Reduce noise, dust and emissions
Higher quality end product
Easy to transport/relocate
Reduce Crusher / Screen idle time.
Its portability allows it to work in confined spaces and also where heavier conveyors would find it impossible to manoeuvre.
Options:
Heavy duty belt
Chevron belt
Electric Drive
Scraper upgrade
Coupling kit for hydraulic version
Control valve to raise / lower / start / stop
Powered radial drive
Diesel hydraulic Power-pack
Feedboot liners
Hydraulic handpump to raise and lower
Quality:
Telestack is an ISO 9001: 2008 registered company.
Telestack Equipment is built to the highest standards within the industry.
Telestack offers a wide range of Bulk Material Handling systems.

2020 TELESTACK LS-5032 WHEELED STACKER STOCKPILE CONVEYOR

MDS M820 TRACKED HEAVY DUTY ROCK TROMMEL
Heavy-Duty | Easy-To-Use | World-Class Brand | Official Authorised Dealer
Available for SALE & HIRE
USED / EX-DEMO machines available (subject to stock) at discounted prices. Call the dealer to enquire.
COMPLETE after-sale service available with the dealer, including spare parts, machine servicing & support.
MACHINE DETAILS

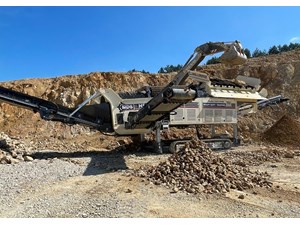

The M820 is a large, heavy duty rock trommel, capable of screening rock upto 1m (40) in size at approximately 750 tons per hour. It is ideal for use in cleaning dirty rock or screening blasted material. With 3 possible configurations, our modular trommel covers many applications. The M820 comes with 3 or 4 splits.
TECHNICAL INFORMATION
Tonnes Per Hour: 600-700
Trommel Drum Length: 8m
Trommel Drum Diameter: 2m
Max Rock Size: 1m
Hopper Capacity: 70m³
Feed Mechanisms: Hydraulic Push Feeder
Engine: CAT 7.1

2020 MDS M820 TRACKED HEAVY DUTY ROCK TROMMEL

New & Used | Wheeled Radial Stacker | 24m Conveyor | Available Australia-Wide | Manufacturer's Warranty

2020 TELESTACK RS-424X 24M PLATE RADIAL STACKER CONVEYOR

The DSP 150 Compact Cyclone Sandwasher is used to wash sand, recover maximum fines and dewater sand in a modular self-contained unit. One to two grades can be produced, which are treated to meet standards such as grain size, cleanliness, and consistency.
This maximises saleable product and produces higher quality outputs. The range is easy to operate and proves both energy and cost efficient for sand production.
FEATURES AND BENEFITS:
- The high quality of fines recovery
- Both energy and cost efficient
- Maximum recovery of material above 200 mesh
- Removes silt, slime and clays below
200 mesh
- Significant reduction in saleable
material sent to settling pond
- Dewatering to 10 - 15% of residual
water content
DIMENSIONS AND WEIGHT:
- Working length: 7055mm
- Working width: 2958 mm
- Working height: 7187mm
- Feed height: 2015mm
- Product Discharge Height: 1335mm
- Waste Water Discharge Height:
5071mm
- Weight: 8000kg
Output potential up to 135tph
SUMP TANK:
- Level stabilisation by floater valve
- Tank capacity - 5800L
- Feed flange, overflow pipe drain hatch,
pump intake connection pipe
- Skid mounted with an integrated base for
motor and pump
DEWATERING SCREEN
- Dewatering screen (L:3660MM
W:1545MM)
- Galvanised
- Reinforced Bolted Construction
- Dewatering area 5.5m2
- Modular polyurethane sieves 1mm standard opening
- 2 No. 7.5kW offset vibrating motors
- 8 No. High-efficiency marshmallow
rubber springs
- Splash protection over the rear of
dewatering screen
- Replaceable modular backsplash
panels
HYDROCYCLONE
- Rubber-lined 660mm diametre cyclone
PUMP
- Heavy-duty rubber lined slurry (150mm)
- IP 55 electric motor 45kW
- Rubber intake pipe with flexible connection sleeve
- Discharge pipe, reducer and elbow
-Flexible rubber pipe
For more information, call the Tricon team
Find details and brochures on all of Tricon's machines at https://www.triconequipment.com.au/

2020 DERNASEER DSP150 CYCLONE SANDWASHER

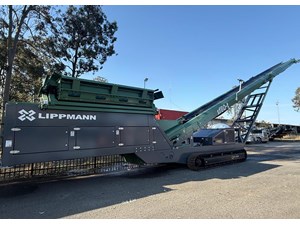

The newly designed SF80 are Lippmann's latest offering as a Hopper Feeder / Stacker has a large 13m³ hopper that transfers material onto an 80 FT (24.38m), 1200mm Wide Conveyor and provides a rear,...

LIPPMANN SF80 HOPPER FEEDER / STACKER

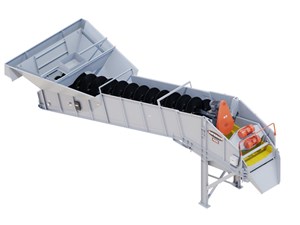

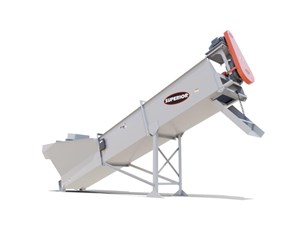

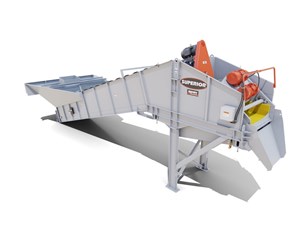

The Aggredry Dewatering Washer, a combination wet screw and dewatering screen, can be used anywhere a fine material washer might be used. However, the added benefits pay back your investment in a v...

2023 SUPERIOR INDUSTRIES AGGREDRY® DEWATERING WASHER 36"

The Superior TSSA 130 Conveyor eliminates material segregation by stockpiling materials in windrows to ensure the stockpile meets specifications.

IN STOCK & AVAILABLE NOW

SUPERIOR INDUSTRIES TELESTACKER® CONVEYOR TSSA 130

Australia's ONLY authorised MDS dealer!

| 600mm Max Rock Size | 300 tonnes per hour | CAT 2.2 tier 4 diesel engine
The MDS M412 trommels are perfect for separating the fines from the larger aggregate in recycling and smaller quarrying type operations Civil waste or recycling aggregates the M412 in conjunction with the drum cleaner makes light work of both

2020 TEREX MDS M412 TRACKED HEAVY DUTY ROCK TROMMEL

The Portafill MR-6 is a compact mobile scalping screen suited to work in a wide variety of applications.

PORTFILL MR-6 RECLAIMER SCREEN

The Terex MDS M515 Heavy Duty Trommel, the flagship model in the Terex MDS range. It excels at crafting RipRap and reclaiming rocks entangled with clay and other adhesive materials. The updated des...

TEREX MDS M515 HEAVY DUTY TRACKED TROMMEL

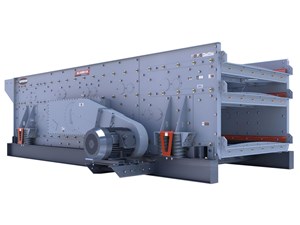

Guardian® Horizontal (6x20) - 3 Deck Screen

* VS2 Technology - Low maintenance design ensures smooth startup and shutdown of screen.
* Gear Case Sealing - Protects bearings and gears from water ingress.
* Segmented tailgates for safe removal and maintenance.
* Speed: 730 - 835 RPM
* 2 year / 6000hr Warranty

2022 SUPERIOR INDUSTRIES GUARDIAN 6203 20X6 SCREEN BOX WITH SUB FRAME
