TRICON MINING EQUIPMENT PTY LTD

Crushing operations looking for mobility and crushing Capacities in excess of 400 TPH in one product turn to the Lippmann 1060j, one of the most powerful in the jaw crusher product range. The 1060j...

2023 LIPPMANN 1060J MOBILE JAW CRUSHER

2020 TELESTACK HF-520 20M HOPPER FEEDER / FEED LOADER CONVEYOR

The DSP 150 Compact Cyclone Sandwasher is used to wash sand, recover maximum fines and dewater sand in a modular self-contained unit. One to two grades can be produced, which are treated to meet standards such as grain size, cleanliness, and consistency.
This maximises saleable product and produces higher quality outputs. The range is easy to operate and proves both energy and cost efficient for sand production.
FEATURES AND BENEFITS:
- The high quality of fines recovery
- Both energy and cost efficient
- Maximum recovery of material above 200 mesh
- Removes silt, slime and clays below
200 mesh
- Significant reduction in saleable
material sent to settling pond
- Dewatering to 10 - 15% of residual
water content
DIMENSIONS AND WEIGHT:
- Working length: 7055mm
- Working width: 2958 mm
- Working height: 7187mm
- Feed height: 2015mm
- Product Discharge Height: 1335mm
- Waste Water Discharge Height:
5071mm
- Weight: 8000kg
Output potential up to 135tph
SUMP TANK:
- Level stabilisation by floater valve
- Tank capacity - 5800L
- Feed flange, overflow pipe drain hatch,
pump intake connection pipe
- Skid mounted with an integrated base for
motor and pump
DEWATERING SCREEN
- Dewatering screen (L:3660MM
W:1545MM)
- Galvanised
- Reinforced Bolted Construction
- Dewatering area 5.5m2
- Modular polyurethane sieves 1mm standard opening
- 2 No. 7.5kW offset vibrating motors
- 8 No. High-efficiency marshmallow
rubber springs
- Splash protection over the rear of
dewatering screen
- Replaceable modular backsplash
panels
HYDROCYCLONE
- Rubber-lined 660mm diametre cyclone
PUMP
- Heavy-duty rubber lined slurry (150mm)
- IP 55 electric motor 45kW
- Rubber intake pipe with flexible connection sleeve
- Discharge pipe, reducer and elbow
-Flexible rubber pipe
For more information, call the Tricon team
Find details and brochures on all of Tricon's machines at https://www.triconequipment.com.au/

2020 DERNASEER DSP150 CYCLONE SANDWASHER

The Terex MDS MT15H High Level Feeder, combines the highly versatile feeder system and stockpiling conveyor, allowing the operator to directly discharge from wheel loaders to reduce the amount of m...

TEREX MT15H HIGH LEVEL FEEDER

IN STOCK & AVAILABLE NOW

The RM 90GO! is a mobile impact crusher that provides the best performance in its class without sacrificing mobility.
This high-performance machine can tackle the toug...

RUBBLEMASTER RM90 GO! MOBILE IMPACT CRUSHER

Self-Cleaning Magnet | CORE 1000 D+ | Twin Pole | Electric | 1000mm x 1000mm
These magnets can easily pluck out unwanted tramp metal from a flow of material and automatically discard of the metal, removing the need to manually clean the magnet

2020 CONVEYORTEK SELF-CLEANING MAGNET CORE 1000 D+ | TWIN POLE | ELECTRIC | 1000MM X 1000MM

The RM 120X combines maximum safety with maximum performance and flexibility. Using RM Operations Assist and RM GO! SMART, the crusher interacts with the machine operator who is able to see the sta...

RUBBLEMASTER RM 120X

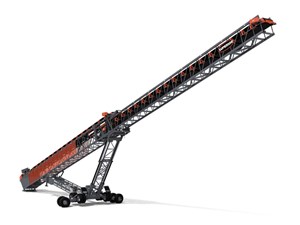

TELESTACK TC624R - MOBILE TRACKED STOCKPILE CONVEYOR
The TC624R is a track-mounted fully mobile conveyor designed to work at production rates of up to 600tph. As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their onboard conveyors to increase in size and length to cope with higher tonnages. Track conveyors fulfil this need by providing much larger stockpile capacity and at the same time improve plant mobility by removing material from the processing equipment.
TECHNICAL INFORMATION
* Conveyor Length 23.84m
* Maximum Discharge Height (26º) 11.44m
* Minimum Discharge height (12º) 6.8m
* Production Capacity 600 tph
* Stockpile capacity at 26º 2,761m³

TC624R RADIAL STOCKPILE CONVEYOR FEATURES
* High throughput of up to 600 tph (660 Ton / hr)
* Maximum distance between tracks and head drum, for optimum stockpiling capacity
* Maximum lump feed size of up to 125mm (5")
* Front and rear adjustable telescopic to obtain desired discharge or feed-in height + Engine protection shutdown system
* Counterweight built into feed boot area to give integral strength and stability in working position.
* Folding head and tail section for ease of transport
* Paint specification, Cream: RAL 7032, Red: RAL 3001

2020 TELESTACK TC624R TRACKED RADIAL STOCKPILE CONVEYOR

2020 LIPPMANN LJ 2950 MOBILE JAW CRUSHER

2020 TELESTACK TC 621 MOBILE STACKER CONVEYOR Track Conveyor

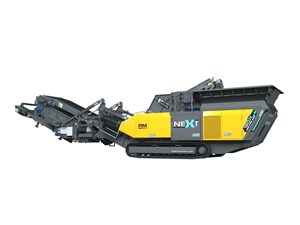

2022 RUBBLE MASTER RM120X HYBRID (DIESEL / ELECTRIC) MOBILE CRUSHER C/W SCREEN BOX & OVERSIZE RECIRC & STOCKPILE.
The RM Group once again sets new standards in user-friendliness with RM NEXT. As the first NEXT philosophy crusher, the RM 120X combines maximum safety with maximum performance and flexibility. Using RM Operations Assist and RM GO! SMART, the crusher interacts with the machine operator who is able to see the status of the machine from the loader cab. The Performance Indicator also enables maximum efficiency in processing without leaving the cab.
* 4m3 One Piece Hopper C/w 2 x Vibration Motors
* 1160x820 4 bar rotor
* 3 rotor speed settings
* Detachable Screen Box for Easy Transport and Servicing
* Large 5.5m2 Screen Surface (3,700 x 1,480mm)
* Fitted with 28mm Screen Mesh Media
* Integrated Hydraulic Blow Bar Lifter
* Centralised Machine Control C/w Compartment Lighting
* Wireless Remote Control
* Self Cleaning, Magnetic Separator
* Water Pump for Dust Suppression
* Up to 350 Tonne / Hour Output Potential (product dependant)
* Feed Material Size Max 950mm (product dependant)
* John Deer Tier 3, Constant Speed 286KW
* Tracked and Fully Mobile
* CSS Range: 20 - 160mm
* Intuitive 'Push Button' Control System
* Hydraulic Overload Protection
* 1,200mm wide discharge belt
* 3,600mm Discharge Height
* Tracked and Fully Mobile
* Weights: RM120X = 37,600kg, Screen Assy. = 6,400kg
* E-stops
* Fire Extinguisher

Give team Tricon a call, or complete and submit the enquiry form.
For more details and brochures head to our website https://www.triconenvironmental.com.au/

RUBBLEMASTER RM 120X MOBILE IMPACT CRUSHER

Permanent Suspended Magnet | CORE 700 (T1) | Single Pole | 750mm x 500mm Magnet

2020 CONVEYORTEK PERMANENT SUSPENDED MAGNET CORE 700 (T1) | SINGLE POLE | 750MM X 500MM
