TRICON MINING EQUIPMENT PTY LTD

The Terex MDS MT24 Tracked Mounted Conveyor is suited to aggregate and quarrying applications. Highly mobile and built to last this tracked conveyor can be folded for easy transportation to your op...

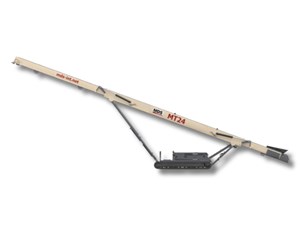

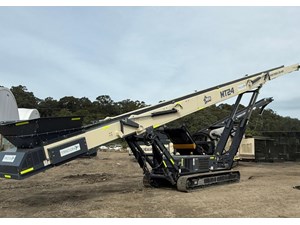

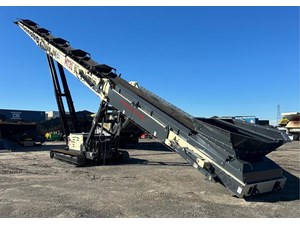

TEREX MT24 TRACKED CONVEYOR

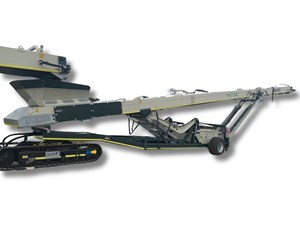

The Terex MDS MT15H High Level Feeder, combines the highly versatile feeder system and stockpiling conveyor, allowing the operator to directly discharge from wheel loaders to reduce the amount of m...

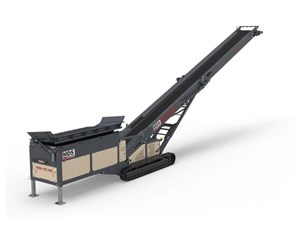

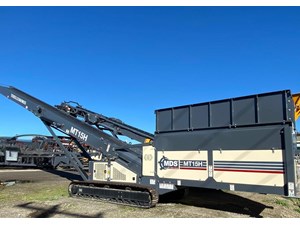

TEREX MT15H HIGH LEVEL FEEDER

The Terex MDS range of mobile conveyors are designed to work in conjunction with the entire range of Terex MDS Heavy Duty Trommels. Using conveyors means increased stockpile capacity and reduces on...

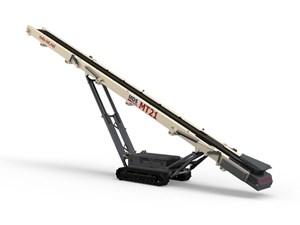

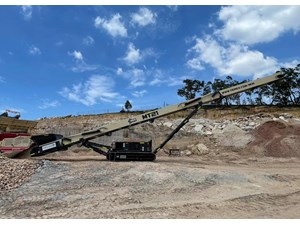

TEREX MT21 TRACKED CONVEYOR

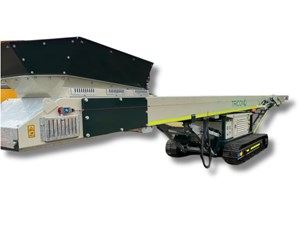

TRICON TC 5036 TRACKED CONVEYOR
* New Machine, build 2022
* 15m Conveyor
* 900mm Wide Belt
* CAT 2.2 Engine
* Tracked & Mobile
* Return Roller Guards
* Fire Extinguisher

TRICON EQUIPMENT TC 5036

The R8048TR is an 80' 24m Radial Stockpile Conveyor, and a great option for gravel pits, processing sand, stone, or organics. It is better suited to production yards, rather than a contractor out m...

TRICON R8048TR 24M RADIAL STOCKPILE CONVEYOR

The heavy-duty R6536TR conveyor is a tracked radial stockpiler, meaning it will swing to create a bank of stockpiles in a circle around the machine. This increases the size of your stockpiles witho...

TRICON R6536TR TRACKED RADIAL STOCKPILE CONVEYOR

2017 TELESTACK TC-424X MOBILE STOCKPILE STACKER CONVEYOR

2020 TELESTACK TC-418X 18M MOBILE STOCKPILE STACKER CONVEYOR

BARFORD TRACKED HOPPER FEEDER BF6048 C/W TIPPING GRID
* 60ft x 48" (18.28m x 1220mm belt width)
* Twin Drive on Discharge Belt
* Hydraulic Slew Hubs
* Hydraulic Support Legs Under Feed Hopper
* Hydraulic Fold on Discharge Belt
* Galvanized Boom Legs
* Check Valves in Rams
* CAT C4.4 Engine
* Battery isolator
* E stops
* Fire Extinguishers
* Electronic Automation Control Movement
* Transport Dimensions 12.1m x 2.3m
* Can ship in 40ft HQ Container if required

Give team Tricon a call or complete the enquiry form and submit.
For more details and brochures head to our website www.triconequipment.com.au

BARFORD BF6048 HOPPER FEEDER

TELESTACK TS 42M AGGSTACK TELESCOPIC CONVEYOR
The TS-36 AggStack radial telescopic conveyor offers a unique material handling solution for the Ports (Ship / Barge Loading and Unloading), Quarrying, Mining and Rail Transportation industries. The flexibility and efficiency of this equipment mean it can be used in many applications long or short term. This versatility also means improved resale value when the project is finished as it is open to many different markets.
TECHNICAL INFORMATION
+ Main Conveyor Length (Drum Centres) 42.7m
+ Machine working Length (18º Extended) 42m
+ Machine Working Length (18º Retracted) 27m
+ Discharge height (18º Extended) 14.5m
+ Feed-in height 2.3m
+ Operating Width 7m
+ Stockpile capacity at 18º 57,365m³
CONVEYOR FEATURES
+ Production rates of up to 800 Tonnes per hour
+ Flexible and reliable mobile material handling equipment
+ Reduced energy consumption (All electric conveyor)
+ Eliminate segregation, degradation, contamination and compaction.
+ Minimal civils and planning permission required as it is mobile equipment.
+ Conveying material reduces dust levels, noise levels and carbon footprint.
+ Conveying material eliminates the high cost of a dump truck or shovel haulage and is the most cost-efficient and environmentally sound method of material transfer.
CONVEYOR APPLICATIONS
+ Stockpiling (Automatically) from secondary crushers and screens.
+ Stockpiling crushed stone, sand, gravel and mineral ores.
+ Stockpiling construction and demolition waste, topsoil, coal, grain etc.
+ Receiving crushed material and stockpiling safely over a quarry face/bench.
+ Working as part of a mobile system on short to medium term projects.
+ Ship loading directly to vessels.
+ Loading directly to trucks or rail wagons.
+ Telescopic mobile link conveyor.

2020 TELESTACK TS 42M AGGSTACK TELESCOPIC CONVEYOR

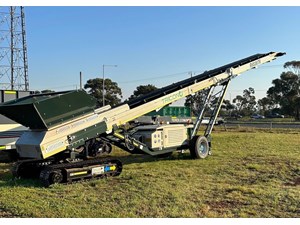

TELESTACK HF-10T HOPPER FEEDER CONVEYOR
The HF 10T is a track-mounted fully mobile conveyor designed to work at production rates of up to 300tph (350 Ton per hr). Telestacks Tracked Hopper Feeder Range is designed to be loaded directly from wheel loaders, (grab cranes, excavators etc.) feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons etc. Since the hopper feeder is track mounted the unit has excellent mobility on-site and will eliminate double handling of material, which reduces overall costs for the operator.
TECHNICAL INFORMATION
Main Conveyor Length 15m (50ft)
Conveyor Belt Width 1050mm (42")
Hopper Width 2.08m
Hopper Length 3.76m
Feed-in Height 2.54m
Hopper Capacity 6.8m³
Stockpile capacity at 24º 488m³
HF-10T HOPPER FEEDER CONVEYOR FEATURES
+ Engine protection shutdown system
+ Folding head section for ease of transport
+ Throughput of up to 300 tph (330 Ton / hr)
+ Maximum lump feed size of up to 100mm (4")
+ Front and rear adjustable telescopic to obtain desired discharge height
+ Natural design of the hopper gives integral strength and stability in working position.
+ Maximum distance between tracks and head drum, for optimum stockpiling capacity
+ 300mm (12) Tapered Extensions on hopper achieving a 6.8 m³ (8.9yds³) capacity hopper as standard
HF-10T HOPPER FEEDER CONVEYOR APPLICATIONS
+ Feeding fixed equipment
+ Building stockpiles in warehouses
+ Feeding auxiliary Telestack equipment
+ Stockpiling from secondary crushers and screens
+ Feed directly from wheel loaders, grabs and excavators
+ Mobile reclaim hopper, feeding onto Stacker/Re-claimer belt
+ Reclaiming and discharging onto overland conveyor systems
+ Loading vessels and barges, directly from wheel loaders or grab cranes
Give the Tricon team a call or complete the form to make an enquiry.
