TRICON MINING EQUIPMENT PTY LTD

The Lippmann Triple Deck Screeners are the most advanced and innovative portable vibratory screening plants in production today.

IN STOCK & AVAILABLE NOW

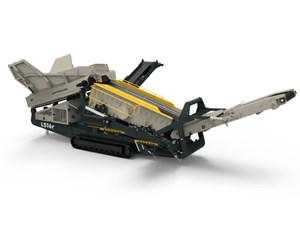

LIPPMANN L520S TRIPLE DECK RECLAIMER / SCALPING SCREEN

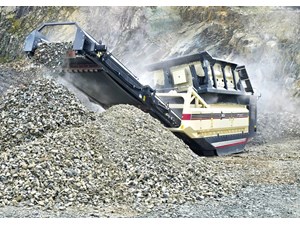

LIPPMANN LJ-2950 MOBILE JAW CRUSHER
The Lippmann LJ-Series are some of the most versatile crushers on the market, boasting the widest jaw in the category along with innovative designs to deliver maximum throughput and production. The LJ-Series delivers industry leading jaw speed, teamed with enhanced die angles, to bring better reduction and material processing to a variety of applications.
With 1270mm x 735mm single toggle jaw (the widest jaw in its class), the LJ-2950 places Lippmann at the fore of portable crushing machinery. Maximum productivity is delivered through the enhancements to the jaw box including heavier flywheels and optimization for all crushing applications. The LJ-2950's jaw speed leads to better reduction and material being processed faster through the crushing chamber. Lippmann-Milwaukee has a proven reputation for designing quality, best-in-class equipment, and the LJ-2950 crusher brings even more power and productivity together in one machine. With its class-leading throughput and capacity and the largest stockpile height in its category, this crusher continues to push the boundaries of industry performance.
TECHNICAL INFORMATION
Engine 350Hp (261kW)
Crusher Speed 280 rpm
Feed Opening 50" x 29" (1270mm x 735mm)
Minimum Opening 2" (51mm)
Maximum Opening 7" (175m)
Hopper (LxW) 5374mm x 3732mm
Stockpile Height - Main Conveyor 13' - 11" (4250mm)
Main Conveyor Belt Width 48" (1200mm)
Weight 51,000 Kgs
LJ-2950 JAW CRUSHER FEATURES
+ Track mobile
+ Jaw with reversible hydrostatic drive, reversible jaw plates, and fully hydraulic closed side setting (CSS) adjust jaw
+ Longer fixed jaw die for more capacity and deeper nip angle deliver better jaw die utilization
+ Enhanced jaw speed leads to better reduction and product being processed faster through the crushing chamber
+ Folding hopper mounted over vibrating pan feeder with integral grizzly pre-screen
+ Cheek plates and flywheels are heavier and balanced for increased efficiency
+ Extended main conveyor as standard, giving large stockpile capacity. Conveyor lowers and raises hydraulically
+ User friendly waterproof and dustproof control panel allows monitoring of pressures, fluid levels, and fuel consumption
+ Optional magnet enables magnetic material separation from the source material

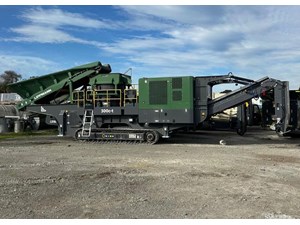

2020 LIPPMANN LJ 2950 MOBILE JAW CRUSHER

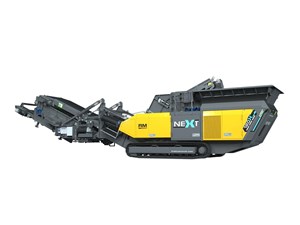

2022 RUBBLE MASTER RM120X HYBRID (DIESEL / ELECTRIC) MOBILE CRUSHER C/W SCREEN BOX & OVERSIZE RECIRC & STOCKPILE.
The RM Group once again sets new standards in user-friendliness with RM NEXT. As the first NEXT philosophy crusher, the RM 120X combines maximum safety with maximum performance and flexibility. Using RM Operations Assist and RM GO! SMART, the crusher interacts with the machine operator who is able to see the status of the machine from the loader cab. The Performance Indicator also enables maximum efficiency in processing without leaving the cab.
* 4m3 One Piece Hopper C/w 2 x Vibration Motors
* 1160x820 4 bar rotor
* 3 rotor speed settings
* Detachable Screen Box for Easy Transport and Servicing
* Large 5.5m2 Screen Surface (3,700 x 1,480mm)
* Fitted with 28mm Screen Mesh Media
* Integrated Hydraulic Blow Bar Lifter
* Centralised Machine Control C/w Compartment Lighting
* Wireless Remote Control
* Self Cleaning, Magnetic Separator
* Water Pump for Dust Suppression
* Up to 350 Tonne / Hour Output Potential (product dependant)
* Feed Material Size Max 950mm (product dependant)
* John Deer Tier 3, Constant Speed 286KW
* Tracked and Fully Mobile
* CSS Range: 20 - 160mm
* Intuitive 'Push Button' Control System
* Hydraulic Overload Protection
* 1,200mm wide discharge belt
* 3,600mm Discharge Height
* Tracked and Fully Mobile
* Weights: RM120X = 37,600kg, Screen Assy. = 6,400kg
* E-stops
* Fire Extinguisher

Give team Tricon a call, or complete and submit the enquiry form.
For more details and brochures head to our website https://www.triconenvironmental.com.au/

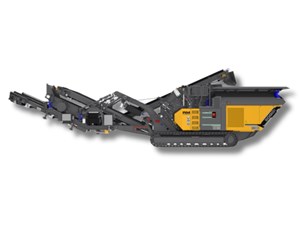

RUBBLEMASTER RM 120X MOBILE IMPACT CRUSHER

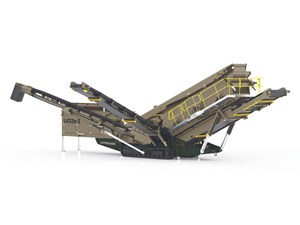

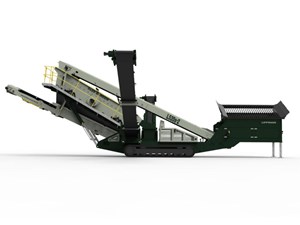

Considered some of the world's largest track mobile screeners, the L622s-2 and L622s-3 are also positioned as two of the most productive vibratory screening plants, delivering more true screening a...

LIPPMANN L622S 3 DECK MOBILE SCREENER

Trommel, Cat engine, self-removing drum, 4 wheel drive, excellent for green waste & soil applications

2021 TEREX MDS M518 R

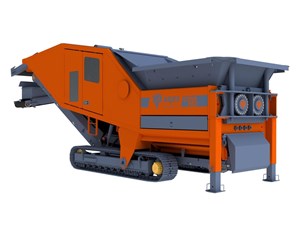

The MDS M300 is a powerful heavy-duty scalper designed to meet the toughest industrial demands. This powerful, heavy-duty machine is designed to introduce the next generation compact scalping grid....

TEREX M300 SCALPING GRID

The RM 120X combines maximum safety with maximum performance and flexibility. Using RM Operations Assist and RM GO! SMART, the crusher interacts with the machine operator who is able to see the sta...

RUBBLEMASTER RM 120X

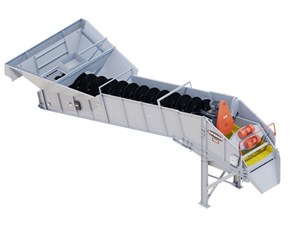

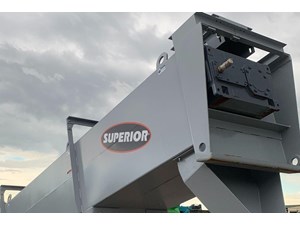

The 36" Aggredry Dewatering Washer, a combination wet screw and dewatering screen, can be used anywhere a fine material washer might be used.

IN STOCK & AVAILABLE NOW

2021 SUPERIOR INDUSTRIES AGGREDRY® DEWATERING WASHER 36"

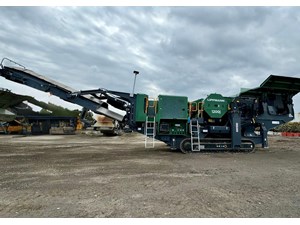

LIPPMANN J3055 JAW CRUSHER - FIXED JAW CRUSHING MACHINE
Lippmann designed its new 3055 jaw crusher as a lighter-weight, contractor-friendly crushing solution that doesnt sacrifice productivity and reliability. The Lippmann 3055 gives customers a durable crusher with added focus on portability, serviceability, and safety, making it an excellent addition to any rental fleet.
PRODUCT FEATURES
Fabricated and stress relieved frame
One-piece, cast steel swing jaw
Dual pick points for swing jaw lifting
Swing jaw servicing cylinder to move swing jaw forward
Taper roller swing jaw bearings
Spherical roller frame bearings
Grease lubrication
Universal, fully-grooved flywheels
Dual wedge with hydraulic assist CSS adjustment
Automatically maintained hydraulic assist tension
rod adjustment
Jaw die ignite device to eliminate manganese welding
Bolt-in, replaceable toe protector/die wedge
Cast manganese die extensions
Cast manganese cheek plates
Ball and socket type toggle bearings
Single piece toggle bearing/block
Bolted wedge swing jaw toggle bearing retention
Spring base cutout for ease of install and tension
rod maintenance
PRODUCT SPECIFICATIONS
FEED OPENING 30X55
ELECTRIC HP 200
FLYWHEEL SPEED 250 RPM
DISCHARGE OPENING 3-7
WEIGHT (LBS.) 57,500
FLYWHEEL DIAMETER 54
SWING DIE LENGTH 65
STATIONARY DIE LENGTH 58.5
SHAFT DIA. CENTER 13.625
SHAFT DIA. SWING BEARING 11.8
SHAFT DIA. FRAME BEARING 10.25
SHAFT THROW 1.5

2020 LIPPMANN J3055 JAW CRUSHER

The M820 is the largest trommel in the MDS range and is the ideal heavy duty trommel for processing large volumes of material that is capable of taking feeds up to 40 tonnes, straight from dump tru...

2024 MDS M820 TRACKED HEAVY DUTY ROCK TROMMEL

The Terex MDS M413 Mobile Tracked Heavy Duty Trommel ideal for screening from light material to recycling demolition waste.

IN STOCK & AVAILABLE NOW

TEREX MDS M413 TRACKED HEAVY DUTY ROCK TROMMEL

The Aggredry Dewatering Washer, a combination wet screw and dewatering screen, can be used anywhere a fine material washer might be used. However, the added benefits pay back your investment in a v...

2023 SUPERIOR INDUSTRIES AGGREDRY® DEWATERING WASHER 36"
