TRICON MINING EQUIPMENT PTY LTD

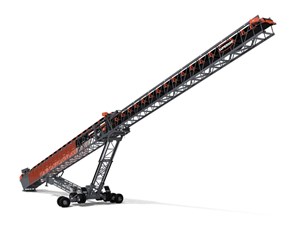

Long known as the "King of the Stockpile," Superior's world famous radial telescopic conveyor is a material handler's most effective weapon against costly stockpile segregation. Its variable height...

SUPERIOR INDUSTRIES TELESTACKER® TSSA 36X150

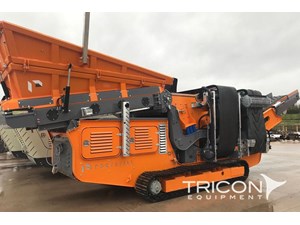

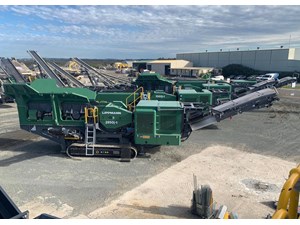

LIPPMANN LJ-2950 MOBILE JAW CRUSHER
The Lippmann LJ-Series are some of the most versatile crushers on the market, boasting the widest jaw in the category along with innovative designs to deliver maximum throughput and production. The LJ-Series delivers industry leading jaw speed, teamed with enhanced die angles, to bring better reduction and material processing to a variety of applications.
With 1270mm x 735mm single toggle jaw (the widest jaw in its class), the LJ-2950 places Lippmann at the fore of portable crushing machinery. Maximum productivity is delivered through the enhancements to the jaw box including heavier flywheels and optimization for all crushing applications. The LJ-2950's jaw speed leads to better reduction and material being processed faster through the crushing chamber. Lippmann-Milwaukee has a proven reputation for designing quality, best-in-class equipment, and the LJ-2950 crusher brings even more power and productivity together in one machine. With its class-leading throughput and capacity and the largest stockpile height in its category, this crusher continues to push the boundaries of industry performance.
TECHNICAL INFORMATION
Engine 350Hp (261kW)
Crusher Speed 280 rpm
Feed Opening 50" x 29" (1270mm x 735mm)
Minimum Opening 2" (51mm)
Maximum Opening 7" (175m)
Hopper (LxW) 5374mm x 3732mm
Stockpile Height - Main Conveyor 13' - 11" (4250mm)
Main Conveyor Belt Width 48" (1200mm)
Weight 51,000 Kgs
LJ-2950 JAW CRUSHER FEATURES
+ Track mobile
+ Jaw with reversible hydrostatic drive, reversible jaw plates, and fully hydraulic closed side setting (CSS) adjust jaw
+ Longer fixed jaw die for more capacity and deeper nip angle deliver better jaw die utilization
+ Enhanced jaw speed leads to better reduction and product being processed faster through the crushing chamber
+ Folding hopper mounted over vibrating pan feeder with integral grizzly pre-screen
+ Cheek plates and flywheels are heavier and balanced for increased efficiency
+ Extended main conveyor as standard, giving large stockpile capacity. Conveyor lowers and raises hydraulically
+ User friendly waterproof and dustproof control panel allows monitoring of pressures, fluid levels, and fuel consumption
+ Optional magnet enables magnetic material separation from the source material

2020 LIPPMANN LJ 2950 MOBILE JAW CRUSHER

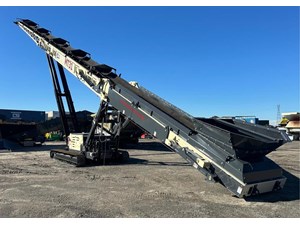

Radial Tracked Stockpile Conveyor
- Cat 2.2 Engine
- 400 Tonne / Hour Output Potential
- 65ft X 36" (19.81m X 915mm Belt Width)
- c/w Large Rubber Lined Feed Hopper
- Galvanized Inner Telescopic Legs
- Galvanized Roller Guards
- Return Roller Guard
- Reflective Tape
- Lanyards
- Fire Extinguisher
Contact our team for more information.
POA

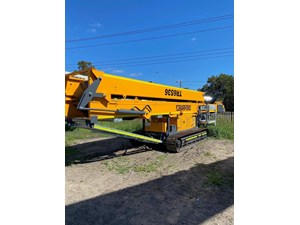

TRICON EQUIPMENT TR6536 TRACKED RADIAL STOCKPILE CONVEYOR

The Portafill MR-2 is an easy to operate, compact, portable and highly reliable screening plant. We won't be beaten on price, enquire today!

IN STOCK & AVAILABLE NOW

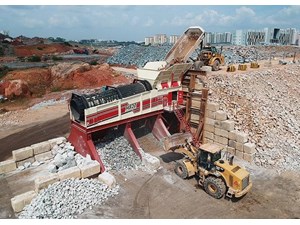

2020 PORTAFILL MR-2 RECLAIMER SCREEN

NEW  |  Lippmann Blending Plant  |  Two 15 Hoppers  |  Available Now  |  Blending/Mixing Plant

2020 LIPPMANN MX BLENDING PLANT

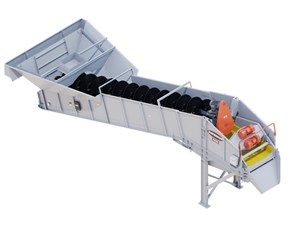

The DSP 150 Compact Cyclone Sandwasher is used to wash sand, recover maximum fines and dewater sand in a modular self-contained unit. One to two grades can be produced, which are treated to meet standards such as grain size, cleanliness, and consistency.
This maximises saleable product and produces higher quality outputs. The range is easy to operate and proves both energy and cost efficient for sand production.
FEATURES AND BENEFITS:
- The high quality of fines recovery
- Both energy and cost efficient
- Maximum recovery of material above 200 mesh
- Removes silt, slime and clays below
200 mesh
- Significant reduction in saleable
material sent to settling pond
- Dewatering to 10 - 15% of residual
water content
DIMENSIONS AND WEIGHT:
- Working length: 7055mm
- Working width: 2958 mm
- Working height: 7187mm
- Feed height: 2015mm
- Product Discharge Height: 1335mm
- Waste Water Discharge Height:
5071mm
- Weight: 8000kg
Output potential up to 135tph
SUMP TANK:
- Level stabilisation by floater valve
- Tank capacity - 5800L
- Feed flange, overflow pipe drain hatch,
pump intake connection pipe
- Skid mounted with an integrated base for
motor and pump
DEWATERING SCREEN
- Dewatering screen (L:3660MM
W:1545MM)
- Galvanised
- Reinforced Bolted Construction
- Dewatering area 5.5m2
- Modular polyurethane sieves 1mm standard opening
- 2 No. 7.5kW offset vibrating motors
- 8 No. High-efficiency marshmallow
rubber springs
- Splash protection over the rear of
dewatering screen
- Replaceable modular backsplash
panels
HYDROCYCLONE
- Rubber-lined 660mm diametre cyclone
PUMP
- Heavy-duty rubber lined slurry (150mm)
- IP 55 electric motor 45kW
- Rubber intake pipe with flexible connection sleeve
- Discharge pipe, reducer and elbow
-Flexible rubber pipe
For more information, call the Tricon team
Find details and brochures on all of Tricon's machines at https://www.triconequipment.com.au/

2020 DERNASEER DSP150 CYCLONE SANDWASHER

Permanent Suspended Magnet | CORE 700 (T1) | Twin Pole | 750mm x 650mm Magnet

2020 CONVEYORTEK PERMANENT SUSPENDED MAGNET CORE 700 (T1) | TWIN POLE | 750MM X 650MM

2020 TELESTACK HF-10T HOPPER FEEDER

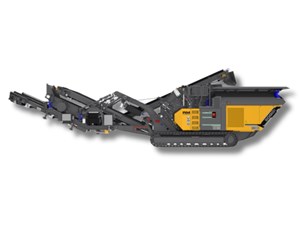

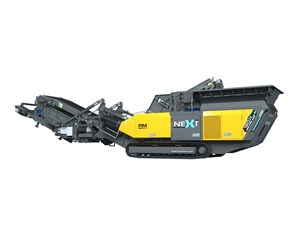

2022 RUBBLE MASTER RM120X HYBRID (DIESEL / ELECTRIC) MOBILE CRUSHER C/W SCREEN BOX & OVERSIZE RECIRC & STOCKPILE.
The RM Group once again sets new standards in user-friendliness with RM NEXT. As the first NEXT philosophy crusher, the RM 120X combines maximum safety with maximum performance and flexibility. Using RM Operations Assist and RM GO! SMART, the crusher interacts with the machine operator who is able to see the status of the machine from the loader cab. The Performance Indicator also enables maximum efficiency in processing without leaving the cab.
* 4m3 One Piece Hopper C/w 2 x Vibration Motors
* 1160x820 4 bar rotor
* 3 rotor speed settings
* Detachable Screen Box for Easy Transport and Servicing
* Large 5.5m2 Screen Surface (3,700 x 1,480mm)
* Fitted with 28mm Screen Mesh Media
* Integrated Hydraulic Blow Bar Lifter
* Centralised Machine Control C/w Compartment Lighting
* Wireless Remote Control
* Self Cleaning, Magnetic Separator
* Water Pump for Dust Suppression
* Up to 350 Tonne / Hour Output Potential (product dependant)
* Feed Material Size Max 950mm (product dependant)
* John Deer Tier 3, Constant Speed 286KW
* Tracked and Fully Mobile
* CSS Range: 20 - 160mm
* Intuitive 'Push Button' Control System
* Hydraulic Overload Protection
* 1,200mm wide discharge belt
* 3,600mm Discharge Height
* Tracked and Fully Mobile
* Weights: RM120X = 37,600kg, Screen Assy. = 6,400kg
* E-stops
* Fire Extinguisher

Give team Tricon a call, or complete and submit the enquiry form.
For more details and brochures head to our website https://www.triconenvironmental.com.au/

RUBBLEMASTER RM 120X MOBILE IMPACT CRUSHER

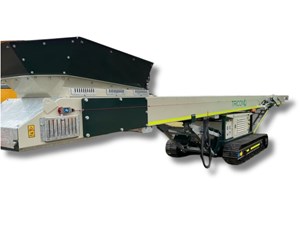

The LS-8036 Electric Radial Stockpile Conveyor is a versatile solution designed to streamline material handling in various industries. With its electric drive system, it offers efficient movement o...

TRICON 8036 ELECTRIC RADIAL STOCKPILE CONVEYOR 24M

TELESTACK HF-10T HOPPER FEEDER CONVEYOR

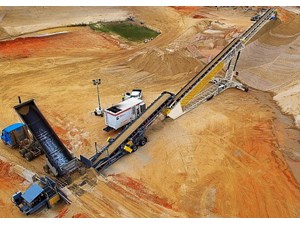

The HF 10T is a track-mounted fully mobile conveyor designed to work at production rates of up to 300tph (350 Ton per hr). Telestacks Tracked Hopper Feeder Range is designed to be loaded directly from wheel loaders, (grab cranes, excavators etc.) feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons etc. Since the hopper feeder is track mounted the unit has excellent mobility on-site and will eliminate double handling of material, which reduces overall costs for the operator.
TECHNICAL INFORMATION
Main Conveyor Length 15m (50ft)
Conveyor Belt Width 1050mm (42")
Hopper Width 2.08m
Hopper Length 3.76m
Feed-in Height 2.54m
Hopper Capacity 6.8m³
Stockpile capacity at 24º 488m³
HF-10T HOPPER FEEDER CONVEYOR FEATURES
+ Engine protection shutdown system
+ Folding head section for ease of transport
+ Throughput of up to 300 tph (330 Ton / hr)
+ Maximum lump feed size of up to 100mm (4")
+ Front and rear adjustable telescopic to obtain desired discharge height
+ Natural design of the hopper gives integral strength and stability in working position.
+ Maximum distance between tracks and head drum, for optimum stockpiling capacity
+ 300mm (12) Tapered Extensions on hopper achieving a 6.8 m³ (8.9yds³) capacity hopper as standard
HF-10T HOPPER FEEDER CONVEYOR APPLICATIONS
+ Feeding fixed equipment
+ Building stockpiles in warehouses
+ Feeding auxiliary Telestack equipment
+ Stockpiling from secondary crushers and screens
+ Feed directly from wheel loaders, grabs and excavators
+ Mobile reclaim hopper, feeding onto Stacker/Re-claimer belt
+ Reclaiming and discharging onto overland conveyor systems
+ Loading vessels and barges, directly from wheel loaders or grab cranes
Give the Tricon team a call or complete the form to make an enquiry.

2019 TELESTACK HF-10T HOPPER FEEDER CONVEYOR
