TRICON MINING EQUIPMENT PTY LTD

ConveyorTek Self-Cleaning Overband Magnet.

2020 CONVEYORTEK SELF CLEANING OVERBAND CONVEYOR MAGNET

BARFORD T516 TRACKED TROMMEL

The Barford T516 Trommel Screen is the latest in a series of mobile screening products with quality and affordability in mind. The TR516 is one of the most popular t...

BARFORD T516 TRACKED TROMMEL

2020 TELESTACK TS-850 - 50M RADIAL TELESCOPIC STOCKPILE CONVEYOR

The 1060j is designed to maximize output of high quality material, with a heavy duty build and high quality wear parts and components to minimize downtime.

IN STOCK & AVAILABLE NOW

LIPPMANN 1060J MOBILE JAW CRUSHER

USED - RUBBLE MASTER RM 90GO! IMPACT CRUSHER

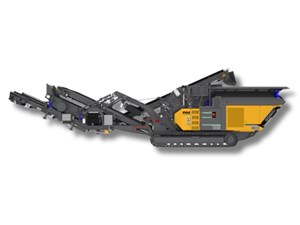

The RM 90GO! is a mobile impact crusher that provides the best performance in its class without sacrificing mobility. This high-performance machine can tackle the toughest crushing and recycling applications and still provide operators with simple controls and fast setup time. RUBBLE MASTERs diesel-electric drive ensures low maintenance and fuel cost over time resulting in a lower cost per ton.
* Throughput up to 250 t/h, depending on material
* Feed material size up to an edge length of 750 mm
* Feed opening 950 x 700 mm
* Crusher unit: RM crusher with 2 or 4 hammers, 3 rotor speeds
* Feed Unit: Asymmetric 3.3 m3 vibro-channel with 2 vibration motors (3.1 kW each)
* Loading Height = 3000 mm
* Feed Intake: 2980 x 2000 mm
* Main discharge belt = 3.35m Height, 1000mm Wide Belt
* Tracked & Fully Mobile
* Weight: 29,000 kg

Give team Tricon Environmental a call, or complete and submit the enquiry form.

RUBBLEMASTER RM 90GO! MOBILE IMPACT CRUSHER

2017 TELESTACK TC-424X MOBILE STOCKPILE STACKER CONVEYOR

Permanent Suspended Magnet | CORE 500 (T3) | Twin Pole | 1050mm x 550mm Magnet

2020 CONVEYORTEK PERMANENT SUSPENDED MAGNET CORE 500 (T3) | TWIN POLE | 1050MM X 550MM

2020 TELESTACK TC 621 MOBILE STACKER CONVEYOR Track Conveyor

2020 TELESTACK HF-520 20M HOPPER FEEDER / FEED LOADER CONVEYOR

CORE 700 (T3) | Single Pole | 1050mm x 500mm Magnet
ConveyorTek magnets are some of the most technologically advanced conveyor magnets on the market. With emphasis placed on innovation and efficiency, they are high-strength and performance guaranteed.
Used in crushing/screening, recycling and material/mineral processing, these magnets are suspended above a conveyor to extract ferrous metals from a conveyed stream of materials.
stocks a range of magnet types & dimensions that are available as Single-Pole or Twin-Pole.
* Single-Pole: Best option when there is a low % of ferrous (iron, steel etc.) material & small amounts of fines material in the stream.

* Twin-Pole: Best option when there is a high % of ferrous (iron, steel etc.) material & large amounts of fines materials in the stream.

CORE 700 (T3) Single-Pole Specifications
+ Test-Certified High Strength Magnet
+ 1050mm (L) x 500mm (W) x 272mm (H) Permanent Magnet
+ 350mm Maximum Operating Gap
+ Single-Pole Magnet*
+ 841Kgs

2020 CONVEYORTEK PERMANENT SUSPENDED MAGNET CORE 700 (T3) | SINGLE POLE | 1050MM X 500MM

Maximum productivity is delivered through the 50" x 29" single toggle jaw with speeds that lead to better reduction and material being processed faster through the crushing chamber. This plant has ...

LIPPMANN LJ2950 MOBILE JAW CRUSHER

LIPPMANN J3055 JAW CRUSHER - FIXED JAW CRUSHING MACHINE
Lippmann designed its new 3055 jaw crusher as a lighter-weight, contractor-friendly crushing solution that doesnt sacrifice productivity and reliability. The Lippmann 3055 gives customers a durable crusher with added focus on portability, serviceability, and safety, making it an excellent addition to any rental fleet.
PRODUCT FEATURES
Fabricated and stress relieved frame
One-piece, cast steel swing jaw
Dual pick points for swing jaw lifting
Swing jaw servicing cylinder to move swing jaw forward
Taper roller swing jaw bearings
Spherical roller frame bearings
Grease lubrication
Universal, fully-grooved flywheels
Dual wedge with hydraulic assist CSS adjustment
Automatically maintained hydraulic assist tension
rod adjustment
Jaw die ignite device to eliminate manganese welding
Bolt-in, replaceable toe protector/die wedge
Cast manganese die extensions
Cast manganese cheek plates
Ball and socket type toggle bearings
Single piece toggle bearing/block
Bolted wedge swing jaw toggle bearing retention
Spring base cutout for ease of install and tension
rod maintenance
PRODUCT SPECIFICATIONS
FEED OPENING 30X55
ELECTRIC HP 200
FLYWHEEL SPEED 250 RPM
DISCHARGE OPENING 3-7
WEIGHT (LBS.) 57,500
FLYWHEEL DIAMETER 54
SWING DIE LENGTH 65
STATIONARY DIE LENGTH 58.5
SHAFT DIA. CENTER 13.625
SHAFT DIA. SWING BEARING 11.8
SHAFT DIA. FRAME BEARING 10.25
SHAFT THROW 1.5

2020 LIPPMANN J3055 JAW CRUSHER
