TRICON MINING EQUIPMENT PTY LTD

2020 TELESTACK TC-418X 18M MOBILE STOCKPILE STACKER CONVEYOR

New & Used | Wheeled Radial Stacker | 24m Conveyor | Available Australia-Wide | Manufacturer's Warranty

2020 TELESTACK RS-424X 24M PLATE RADIAL STACKER CONVEYOR

The MDS MT24L Low Level Feeder Conveyor allows operators to directly discharge from wheel loaders and excavators at a significantly lower feed in height compared to standard hopper feeders. The unique design of the hopper allows for rear feeding which can be an advantage when operating in restricted areas.
The pinless deployment allows for rapid set up times, meaning you get your return on investment in record time. The machine is operated by radio remote, meaning you can ensure the safety of your team on site.
Common applications for this machine include barge loading and trimming using parallel tracking, railroad carriage loading, windrowing, bay loading and confined site operating.
PRODUCTION CAPACITY: Up to 600 tonnes per hour.
ENGINE: CAT 4.4
WEIGHT: 29,550kg
HOPPER: AR400 Hopper
BELT WIDTH: 1300mm discharge belt for streamlined material flow.
FEEDER LENGTH: 4.1m
DISCHARGE HEIGHT: 8m
MAX. DISCHARGE HEIGHT: 10.7m
TRANSPORT DIMENSIONS: 20m long x 3.6m high x 3.2m wide
WORKING DIMENSIONS: 20m long x 5m high x 7m wide
FEATURES
Automatic greasing cartridges at head drum.
Hydraulic folding head section.
Kick out/kick in pressure sensor.
Hydraulically driven orbital slew ring.
Undercarraige with heavy duty tracks.
Twin hydraullic drive feed conveyor.
Tubular feed support frame as standard.
Radio remote to track, slew, start/stop feeder, raise/lower discharge conveyor and tip grip.
Adjustable height
Pinless deployment for a rapid setup

TEREX MDS MT24L

TELESTACK HF-10T HOPPER FEEDER CONVEYOR
The HF 10T is a track-mounted fully mobile conveyor designed to work at production rates of up to 300tph (350 Ton per hr). Telestacks Tracked Hopper Feeder Range is designed to be loaded directly from wheel loaders, (grab cranes, excavators etc.) feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons etc. Since the hopper feeder is track mounted the unit has excellent mobility on-site and will eliminate double handling of material, which reduces overall costs for the operator.
TECHNICAL INFORMATION
Main Conveyor Length 15m (50ft)
Conveyor Belt Width 1050mm (42")
Hopper Width 2.08m
Hopper Length 3.76m
Feed-in Height 2.54m
Hopper Capacity 6.8m³
Stockpile capacity at 24º 488m³
HF-10T HOPPER FEEDER CONVEYOR FEATURES
+ Engine protection shutdown system
+ Folding head section for ease of transport
+ Throughput of up to 300 tph (330 Ton / hr)
+ Maximum lump feed size of up to 100mm (4")
+ Front and rear adjustable telescopic to obtain desired discharge height
+ Natural design of the hopper gives integral strength and stability in working position.
+ Maximum distance between tracks and head drum, for optimum stockpiling capacity
+ 300mm (12) Tapered Extensions on hopper achieving a 6.8 m³ (8.9yds³) capacity hopper as standard
HF-10T HOPPER FEEDER CONVEYOR APPLICATIONS
+ Feeding fixed equipment
+ Building stockpiles in warehouses
+ Feeding auxiliary Telestack equipment
+ Stockpiling from secondary crushers and screens
+ Feed directly from wheel loaders, grabs and excavators
+ Mobile reclaim hopper, feeding onto Stacker/Re-claimer belt
+ Reclaiming and discharging onto overland conveyor systems
+ Loading vessels and barges, directly from wheel loaders or grab cranes
Give the Tricon team a call or complete the form to make an enquiry.

2019 TELESTACK HF-10T HOPPER FEEDER CONVEYOR

BARFORD TRACKED HOPPER FEEDER BF6048 C/W TIPPING GRID
* 60ft x 48" (18.28m x 1220mm belt width)
* Twin Drive on Discharge Belt
* Hydraulic Slew Hubs
* Hydraulic Support Legs Under Feed Hopper
* Hydraulic Fold on Discharge Belt
* Galvanized Boom Legs
* Check Valves in Rams
* CAT C4.4 Engine
* Battery isolator
* E stops
* Fire Extinguishers
* Electronic Automation Control Movement
* Transport Dimensions 12.1m x 2.3m
* Can ship in 40ft HQ Container if required

Give team Tricon a call or complete the enquiry form and submit.
For more details and brochures head to our website www.triconequipment.com.au

BARFORD BF6048 HOPPER FEEDER

2020 BARFORD TR8048 TRACKED STOCKPILE CONVEYOR

Superior's low profile RazerTail Truck Unloader quickly and easily transfers material from belly dump or end dump trucks onto a conveyor for stockpiling or to another truck, railcar or barge. The p...

2021 SUPERIOR INDUSTRIES RAZERTAIL® TRUCK UNLOADER

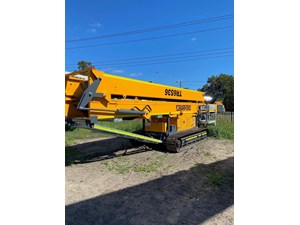

Barford TR6536 Picking Station c/w Self Cleaning Over-Band Magnet.

BARFORD TR6536 TRACKED STOCKPILE CONVEYOR / PICKING STATION.
* Cat 2.2 Engine
* 400 Tonne / Hour Output Potential
* 65ft X 36" (19.81m X 915mm Belt Width)
* Self Cleaning Over-Band Magnet
* Dual Hydraulic Picking Platforms
* Large Rubber Lined Feed Hopper
* Galvanized Inner Telescopic Legs
* Galvanized Roller Guards
* Return Roller Guards
* Reflective Tape
* Lanyards
* Fire Extinguisher

Give team a call on or complete the enquiry form and submit.

For more details and brochures head to our website

Keywords: Tracked Conveyor, Picking Station, Mobile Conveyor, Tracked Stacker, Mobile Stacker, Stockpile Conveyor, Stacker Conveyor, Stockpile Stacker, Scalper Conveyor, Scalping Conveyor, Radial Conveyor, Radial Stacker, Radial Stockpiler, Radial Stacker Conveyor, Radial Stockpile Conveyor, Tracked Radial Conveyor, Tracked Radial Stacker, Tracked Radial Stockpile Conveyor, Telescopic Conveyor, Telescopic Stacker, Telescopic Stockpiler, Telescopic Stacker Conveyor, Telescopic Stockpile Conveyor, Tracker Telescopic Conveyor, Tracked Telescopic Stockpile Conveyor, Mobile Radial Conveyor, Mobile Telescopic Conveyor, Mobile Stockpile Conveyor, Wheeled Conveyor, Wheel Conveyor, Wheeled Stacker, Wheel Stacker, Wheeled Stockpile Conveyor, Wheeled Radial Conveyor, Wheeled Radial Stacker, Wheeled Radial Stockpile Conveyor, Bulk Materials Conveyor, Bulk Materials Stacker, Bulk Materials Stockpile Conveyor.

2022 BARFORD TR6536 PICKING STATION

2020 TELESTACK TS 36-140 AGGSTACK RADIAL TELESCOPIC STOCKPILE CONVEYOR

TELESTACK TS 42M AGGSTACK TELESCOPIC CONVEYOR
The TS-36 AggStack radial telescopic conveyor offers a unique material handling solution for the Ports (Ship / Barge Loading and Unloading), Quarrying, Mining and Rail Transportation industries. The flexibility and efficiency of this equipment mean it can be used in many applications long or short term. This versatility also means improved resale value when the project is finished as it is open to many different markets.
TECHNICAL INFORMATION
+ Main Conveyor Length (Drum Centres) 42.7m
+ Machine working Length (18º Extended) 42m
+ Machine Working Length (18º Retracted) 27m
+ Discharge height (18º Extended) 14.5m
+ Feed-in height 2.3m
+ Operating Width 7m
+ Stockpile capacity at 18º 57,365m³
CONVEYOR FEATURES
+ Production rates of up to 800 Tonnes per hour
+ Flexible and reliable mobile material handling equipment
+ Reduced energy consumption (All electric conveyor)
+ Eliminate segregation, degradation, contamination and compaction.
+ Minimal civils and planning permission required as it is mobile equipment.
+ Conveying material reduces dust levels, noise levels and carbon footprint.
+ Conveying material eliminates the high cost of a dump truck or shovel haulage and is the most cost-efficient and environmentally sound method of material transfer.
CONVEYOR APPLICATIONS
+ Stockpiling (Automatically) from secondary crushers and screens.
+ Stockpiling crushed stone, sand, gravel and mineral ores.
+ Stockpiling construction and demolition waste, topsoil, coal, grain etc.
+ Receiving crushed material and stockpiling safely over a quarry face/bench.
+ Working as part of a mobile system on short to medium term projects.
+ Ship loading directly to vessels.
+ Loading directly to trucks or rail wagons.
+ Telescopic mobile link conveyor.

2020 TELESTACK TS 42M AGGSTACK TELESCOPIC CONVEYOR

2022 BARFORD TR8042 TRACKED STOCKPILE CONVEYOR

2020 TELESTACK TC-621R 21M TRACKED RADIAL STOCKPILE CONVEYOR
