TRICON MINING EQUIPMENT PTY LTD

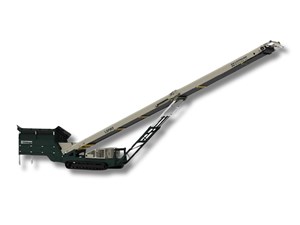

TELESTACK TC624R - MOBILE TRACKED STOCKPILE CONVEYOR

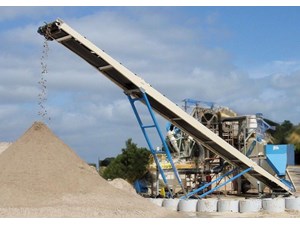

The TC624R is a track-mounted fully mobile conveyor designed to work at production rates of up to 600tph. As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their onboard conveyors to increase in size and length to cope with higher tonnages. Track conveyors fulfil this need by providing much larger stockpile capacity and at the same time improve plant mobility by removing material from the processing equipment.
TECHNICAL INFORMATION
* Conveyor Length 23.84m
* Maximum Discharge Height (26º) 11.44m
* Minimum Discharge height (12º) 6.8m
* Production Capacity 600 tph
* Stockpile capacity at 26º 2,761m³

TC624R RADIAL STOCKPILE CONVEYOR FEATURES
* High throughput of up to 600 tph (660 Ton / hr)
* Maximum distance between tracks and head drum, for optimum stockpiling capacity
* Maximum lump feed size of up to 125mm (5")
* Front and rear adjustable telescopic to obtain desired discharge or feed-in height + Engine protection shutdown system
* Counterweight built into feed boot area to give integral strength and stability in working position.
* Folding head and tail section for ease of transport
* Paint specification, Cream: RAL 7032, Red: RAL 3001

2020 TELESTACK TC624R TRACKED RADIAL STOCKPILE CONVEYOR

2020 TELESTACK HF-10T HOPPER FEEDER

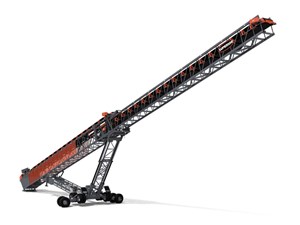

Long known as the "King of the Stockpile," Superior's world famous radial telescopic conveyor is a material handler's most effective weapon against costly stockpile segregation. Its variable height...

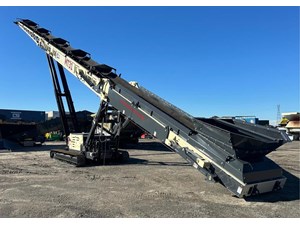

SUPERIOR INDUSTRIES TELESTACKER® TSSA 36X130

Radial Tracked Stockpile Conveyor
- Cat 2.2 Engine
- 400 Tonne / Hour Output Potential
- 65ft X 36" (19.81m X 915mm Belt Width)
- c/w Large Rubber Lined Feed Hopper
- Galvanized Inner Telescopic Legs
- Galvanized Roller Guards
- Return Roller Guard
- Reflective Tape
- Lanyards
- Fire Extinguisher
Contact our team for more information.
POA

TRICON EQUIPMENT TR6536 TRACKED RADIAL STOCKPILE CONVEYOR

2017 TELESTACK TC-424X MOBILE STOCKPILE STACKER CONVEYOR

New & Used | Wheeled Radial Stacker | 24m Conveyor | Available Australia-Wide | Manufacturer's Warranty

2020 TELESTACK RS-424X 24M PLATE RADIAL STACKER CONVEYOR

2020 TELESTACK HF-520 20M HOPPER FEEDER / FEED LOADER CONVEYOR

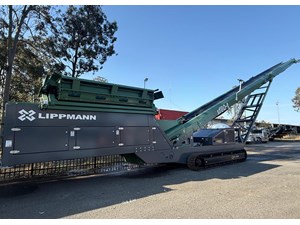

The newly designed SF80 are Lippmann's latest offering as a Hopper Feeder / Stacker has a large 13m³ hopper that transfers material onto an 80 FT (24.38m), 1200mm Wide Conveyor and provides a rear,...

LIPPMANN SF80 HOPPER FEEDER / STACKER

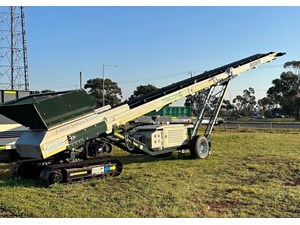

TELESTACK HF-10T HOPPER FEEDER CONVEYOR

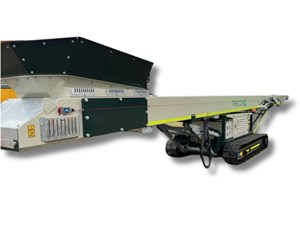

The HF 10T is a track-mounted fully mobile conveyor designed to work at production rates of up to 300tph (350 Ton per hr). Telestacks Tracked Hopper Feeder Range is designed to be loaded directly from wheel loaders, (grab cranes, excavators etc.) feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons etc. Since the hopper feeder is track mounted the unit has excellent mobility on-site and will eliminate double handling of material, which reduces overall costs for the operator.
TECHNICAL INFORMATION
Main Conveyor Length 15m (50ft)
Conveyor Belt Width 1050mm (42")
Hopper Width 2.08m
Hopper Length 3.76m
Feed-in Height 2.54m
Hopper Capacity 6.8m³
Stockpile capacity at 24º 488m³
HF-10T HOPPER FEEDER CONVEYOR FEATURES
+ Engine protection shutdown system
+ Folding head section for ease of transport
+ Throughput of up to 300 tph (330 Ton / hr)
+ Maximum lump feed size of up to 100mm (4")
+ Front and rear adjustable telescopic to obtain desired discharge height
+ Natural design of the hopper gives integral strength and stability in working position.
+ Maximum distance between tracks and head drum, for optimum stockpiling capacity
+ 300mm (12) Tapered Extensions on hopper achieving a 6.8 m³ (8.9yds³) capacity hopper as standard
HF-10T HOPPER FEEDER CONVEYOR APPLICATIONS
+ Feeding fixed equipment
+ Building stockpiles in warehouses
+ Feeding auxiliary Telestack equipment
+ Stockpiling from secondary crushers and screens
+ Feed directly from wheel loaders, grabs and excavators
+ Mobile reclaim hopper, feeding onto Stacker/Re-claimer belt
+ Reclaiming and discharging onto overland conveyor systems
+ Loading vessels and barges, directly from wheel loaders or grab cranes
Give the Tricon team a call or complete the form to make an enquiry.

2019 TELESTACK HF-10T HOPPER FEEDER CONVEYOR

2020 TELESTACK TS-850 - 50M RADIAL TELESCOPIC STOCKPILE CONVEYOR

Barford TR6536 Picking Station c/w Self Cleaning Over-Band Magnet.

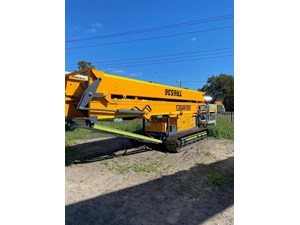

BARFORD TR6536 TRACKED STOCKPILE CONVEYOR / PICKING STATION.
* Cat 2.2 Engine
* 400 Tonne / Hour Output Potential
* 65ft X 36" (19.81m X 915mm Belt Width)
* Self Cleaning Over-Band Magnet
* Dual Hydraulic Picking Platforms
* Large Rubber Lined Feed Hopper
* Galvanized Inner Telescopic Legs
* Galvanized Roller Guards
* Return Roller Guards
* Reflective Tape
* Lanyards
* Fire Extinguisher

Give team a call on or complete the enquiry form and submit.

For more details and brochures head to our website

Keywords: Tracked Conveyor, Picking Station, Mobile Conveyor, Tracked Stacker, Mobile Stacker, Stockpile Conveyor, Stacker Conveyor, Stockpile Stacker, Scalper Conveyor, Scalping Conveyor, Radial Conveyor, Radial Stacker, Radial Stockpiler, Radial Stacker Conveyor, Radial Stockpile Conveyor, Tracked Radial Conveyor, Tracked Radial Stacker, Tracked Radial Stockpile Conveyor, Telescopic Conveyor, Telescopic Stacker, Telescopic Stockpiler, Telescopic Stacker Conveyor, Telescopic Stockpile Conveyor, Tracker Telescopic Conveyor, Tracked Telescopic Stockpile Conveyor, Mobile Radial Conveyor, Mobile Telescopic Conveyor, Mobile Stockpile Conveyor, Wheeled Conveyor, Wheel Conveyor, Wheeled Stacker, Wheel Stacker, Wheeled Stockpile Conveyor, Wheeled Radial Conveyor, Wheeled Radial Stacker, Wheeled Radial Stockpile Conveyor, Bulk Materials Conveyor, Bulk Materials Stacker, Bulk Materials Stockpile Conveyor.

2022 BARFORD TR6536 PICKING STATION

The heavy-duty R6536TR conveyor is a tracked radial stockpiler, meaning it will swing to create a bank of stockpiles in a circle around the machine. This increases the size of your stockpiles witho...

TRICON R6536TR TRACKED RADIAL STOCKPILE CONVEYOR
