TRICON MINING EQUIPMENT PTY LTD

LIPPMANN J3055 JAW CRUSHER - FIXED JAW CRUSHING MACHINE
Lippmann designed its new 3055 jaw crusher as a lighter-weight, contractor-friendly crushing solution that doesnt sacrifice productivity and reliability. The Lippmann 3055 gives customers a durable crusher with added focus on portability, serviceability, and safety, making it an excellent addition to any rental fleet.
PRODUCT FEATURES
Fabricated and stress relieved frame
One-piece, cast steel swing jaw
Dual pick points for swing jaw lifting
Swing jaw servicing cylinder to move swing jaw forward
Taper roller swing jaw bearings
Spherical roller frame bearings
Grease lubrication
Universal, fully-grooved flywheels
Dual wedge with hydraulic assist CSS adjustment
Automatically maintained hydraulic assist tension
rod adjustment
Jaw die ignite device to eliminate manganese welding
Bolt-in, replaceable toe protector/die wedge
Cast manganese die extensions
Cast manganese cheek plates
Ball and socket type toggle bearings
Single piece toggle bearing/block
Bolted wedge swing jaw toggle bearing retention
Spring base cutout for ease of install and tension
rod maintenance
PRODUCT SPECIFICATIONS
FEED OPENING 30X55
ELECTRIC HP 200
FLYWHEEL SPEED 250 RPM
DISCHARGE OPENING 3-7
WEIGHT (LBS.) 57,500
FLYWHEEL DIAMETER 54
SWING DIE LENGTH 65
STATIONARY DIE LENGTH 58.5
SHAFT DIA. CENTER 13.625
SHAFT DIA. SWING BEARING 11.8
SHAFT DIA. FRAME BEARING 10.25
SHAFT THROW 1.5

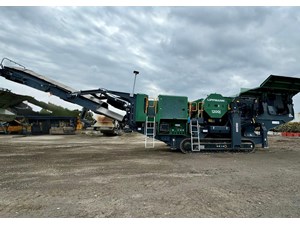

2020 LIPPMANN J3055 JAW CRUSHER

The M518R is a compact tracked trommel designed to be used in various applications. It sits at a lower height, making it easier to transport from site to site

IN STOCK & AVAILABLE NOW

2021 MDS M518R RECYCLING TROMMEL

Guardian® Horizontal (6x20) - 3 Deck Screen

* VS2 Technology - Low maintenance design ensures smooth startup and shutdown of screen.
* Gear Case Sealing - Protects bearings and gears from water ingress.
* Segmented tailgates for safe removal and maintenance.
* Speed: 730 - 835 RPM
* 2 year / 6000hr Warranty

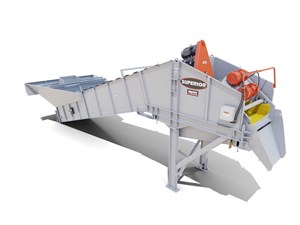

2022 SUPERIOR INDUSTRIES GUARDIAN 6203 20X6 SCREEN BOX WITH SUB FRAME

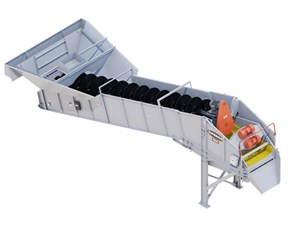

2021 SUPERIOR INDUSTRIES RAZERTAIL TRUCK UNLOADER 48"

2020 TELESTACK TS 36-140 AGGSTACK RADIAL TELESCOPIC STOCKPILE CONVEYOR

ConveyorTek Self-Cleaning Overband Magnet.

2020 CONVEYORTEK SELF CLEANING OVERBAND CONVEYOR MAGNET

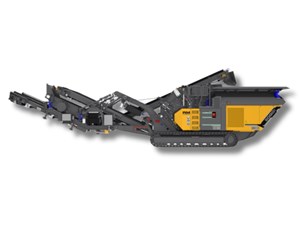

2022 RUBBLE MASTER RM120X HYBRID (DIESEL / ELECTRIC) MOBILE CRUSHER C/W SCREEN BOX & OVERSIZE RECIRC & STOCKPILE.
The RM Group once again sets new standards in user-friendliness with RM NEXT. As the first NEXT philosophy crusher, the RM 120X combines maximum safety with maximum performance and flexibility. Using RM Operations Assist and RM GO! SMART, the crusher interacts with the machine operator who is able to see the status of the machine from the loader cab. The Performance Indicator also enables maximum efficiency in processing without leaving the cab.
* 4m3 One Piece Hopper C/w 2 x Vibration Motors
* 1160x820 4 bar rotor
* 3 rotor speed settings
* Detachable Screen Box for Easy Transport and Servicing
* Large 5.5m2 Screen Surface (3,700 x 1,480mm)
* Fitted with 28mm Screen Mesh Media
* Integrated Hydraulic Blow Bar Lifter
* Centralised Machine Control C/w Compartment Lighting
* Wireless Remote Control
* Self Cleaning, Magnetic Separator
* Water Pump for Dust Suppression
* Up to 350 Tonne / Hour Output Potential (product dependant)
* Feed Material Size Max 950mm (product dependant)
* John Deer Tier 3, Constant Speed 286KW
* Tracked and Fully Mobile
* CSS Range: 20 - 160mm
* Intuitive 'Push Button' Control System
* Hydraulic Overload Protection
* 1,200mm wide discharge belt
* 3,600mm Discharge Height
* Tracked and Fully Mobile
* Weights: RM120X = 37,600kg, Screen Assy. = 6,400kg
* E-stops
* Fire Extinguisher

Give team Tricon a call, or complete and submit the enquiry form.
For more details and brochures head to our website https://www.triconenvironmental.com.au/

RUBBLEMASTER RM 120X MOBILE IMPACT CRUSHER

Maximum productivity is delivered through the 50" x 29" single toggle jaw with speeds that lead to better reduction and material being processed faster through the crushing chamber. This plant has ...

LIPPMANN LJ2950 MOBILE JAW CRUSHER

2020 TELESTACK TC 621 MOBILE STACKER CONVEYOR Track Conveyor

USED 2016 POWERSCREEN MAXTRAK 1000 CONE CRUSHER   3100 hours / full rebuild on Cat C9 engine 23/1/2023

2016 POWERSCREEN MAXTRAK 1000 MOBILE CONE CRUSHER

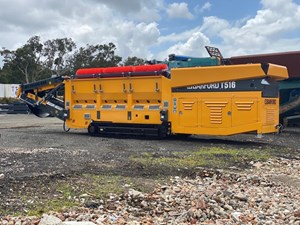

BARFORD T516 TRACKED TROMMEL

The Barford T516 Trommel Screen is the latest in a series of mobile screening products with quality and affordability in mind. The TR516 is one of the most popular t...

BARFORD T516 TRACKED TROMMEL

2021 TRICON T516 TRACKED TROMMEL
The Tricon T516 Trommel Screen is the latest in a series of mobile screening products with quality and affordability in mind. The TR516 is one of the most popular trommel screens on the market.
Quick and easy to transport, the TR516 is robust and easy to use ensuring optimum levels of performance every time. The TR516 can be used to process such materials as soil, compost, skip fines, quarry overburden, shredded MSW, palm kernel and incinerator ash.
* 16' (4.88m) x 5' (1.53m) Drum
* Full Length Brush Drum Cleaner
* Variable Screening Angle
* Cat C4.4 Engine
* 3.8m3 Hopper Capacity
* Remote Control Movement
* 12mm Screen Aperture
* Return Roller Guarding
* Reflective Tape
* Lanyards
* Machine weight: 14,000kg

2021 TRICON ENVIRONMENTAL T516 TRACKED TROMMEL
