TRICON MINING EQUIPMENT PTY LTD

MDS M820 TRACKED HEAVY DUTY ROCK TROMMEL
Heavy-Duty | Easy-To-Use | World-Class Brand | Official Authorised Dealer
Available for SALE & HIRE
USED / EX-DEMO machines available (subject to stock) at discounted prices. Call the dealer to enquire.
COMPLETE after-sale service available with the dealer, including spare parts, machine servicing & support.
MACHINE DETAILS
The M820 is a large, heavy duty rock trommel, capable of screening rock upto 1m (40) in size at approximately 750 tons per hour. It is ideal for use in cleaning dirty rock or screening blasted material. With 3 possible configurations, our modular trommel covers many applications. The M820 comes with 3 or 4 splits.
TECHNICAL INFORMATION
Tonnes Per Hour: 600-700
Trommel Drum Length: 8m
Trommel Drum Diameter: 2m
Max Rock Size: 1m
Hopper Capacity: 70m³
Feed Mechanisms: Hydraulic Push Feeder
Engine: CAT 7.1

2020 MDS M820 TRACKED HEAVY DUTY ROCK TROMMEL

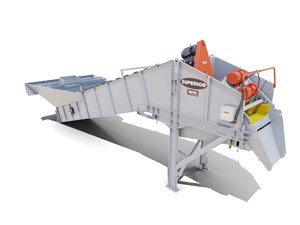

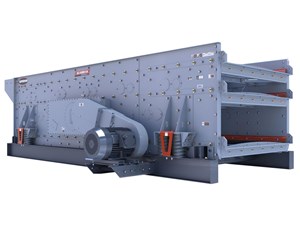

Superior's vibratory horizontal screens are designed with satisfied owners in mind. That means every inch is consistently under investigation for improvement opportunities.

Repeatable quality is...

SUPERIOR INDUSTRIES GUARDIAN HORIZONTAL (6X20) 3 DECK SCREEN

5032HD WHEELED ELECTRIC STACKER CONVEYOR - 15M

2020 TRICON 5032HD WHEELED ELECTRIC STACKER CONVEYOR - 18M

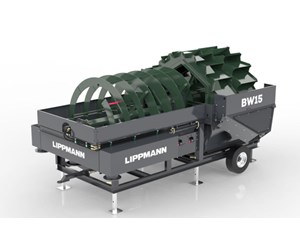

Highly efficient Bucket Wheel range of Sand Classification Systems designed to operate with maximum versatility for efficient dewatering and fine sand recovery. The twin bucket units provide the re...

2024 LIPPMANN BW15 BUCKETWHEEL

NEW & USED / EX-DEMO machines available

The M515 Track Trommel is perfect for cleaning dirty material and can handle rocks up to 800 mm (32") in size. it comes complete with fold out stockpilin...

TEREX M515 TRACKED HEAVY DUTY ROCK TROMMEL

TELESTACK TC-420X - 20M MOBILE TRACKED STOCKPILE CONVEYOR
The Telestack TC-420X stacker is a track-mounted fully mobile conveyor designed to work at production rates of up to 400 tonnes per hour. As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their onboard conveyors to increase in size and length to cope with higher tonnages. Track conveyors fulfil this need by providing much larger stockpile capacity and at the same time improve plant mobility by removing material from the processing equipment.
TECHNICAL INFORMATION
Main Conveyor Length 20m (65ft)
Conveyor Belt Width 1050mm (42")
Feedboot Width 2m
Feedboot Length 2.3m
TC-420X STACKER CONVEYOR FEATURES
+ Engine protection shutdown system
+ Maximum lump feed size of up to 75mm (3")
+ High throughput of up to 400 tph (440 Ton / hr)
+ Folding head and tail section for ease of transport
+ Front and rear adjustable telescopic to obtain desired discharge or feed-in height
+ Maximum distance between tracks and head drum, for optimum stockpiling capacity
+ Counterweight built into feed boot area to give integral strength and stability in working position.
TC-420X STACKER CONVEYOR APPLICATIONS
+ Ship and truck loading.
+ Stockpiling from secondary crushers, screens and shredders.
+ Working as part of a mobile system on short to medium term projects.
+ Stockpiling construction and demolition waste, top soil, coal, grain etc.
+ Receiving crushed material and stockpiling safely over a quarry face/bench.
+ Stockpiling crushed stone, sand and gravel, mineral ores, mulch, woodchip/biomass.

2020 TELESTACK TC-420X 20M MOBILE STOCKPILE STACKER CONVEYOR

Australia's ONLY authorised MDS dealer!

| 600mm Max Rock Size | 300 tonnes per hour | CAT 2.2 tier 4 diesel engine
The MDS M412 trommels are perfect for separating the fines from the larger aggregate in recycling and smaller quarrying type operations Civil waste or recycling aggregates the M412 in conjunction with the drum cleaner makes light work of both

2020 TEREX MDS M412 TRACKED HEAVY DUTY ROCK TROMMEL

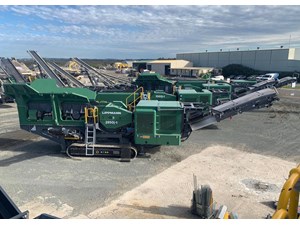

LIPPMANN J3055 JAW CRUSHER - FIXED JAW CRUSHING MACHINE
Lippmann designed its new 3055 jaw crusher as a lighter-weight, contractor-friendly crushing solution that doesnt sacrifice productivity and reliability. The Lippmann 3055 gives customers a durable crusher with added focus on portability, serviceability, and safety, making it an excellent addition to any rental fleet.
PRODUCT FEATURES
Fabricated and stress relieved frame
One-piece, cast steel swing jaw
Dual pick points for swing jaw lifting
Swing jaw servicing cylinder to move swing jaw forward
Taper roller swing jaw bearings
Spherical roller frame bearings
Grease lubrication
Universal, fully-grooved flywheels
Dual wedge with hydraulic assist CSS adjustment
Automatically maintained hydraulic assist tension
rod adjustment
Jaw die ignite device to eliminate manganese welding
Bolt-in, replaceable toe protector/die wedge
Cast manganese die extensions
Cast manganese cheek plates
Ball and socket type toggle bearings
Single piece toggle bearing/block
Bolted wedge swing jaw toggle bearing retention
Spring base cutout for ease of install and tension
rod maintenance
PRODUCT SPECIFICATIONS
FEED OPENING 30X55
ELECTRIC HP 200
FLYWHEEL SPEED 250 RPM
DISCHARGE OPENING 3-7
WEIGHT (LBS.) 57,500
FLYWHEEL DIAMETER 54
SWING DIE LENGTH 65
STATIONARY DIE LENGTH 58.5
SHAFT DIA. CENTER 13.625
SHAFT DIA. SWING BEARING 11.8
SHAFT DIA. FRAME BEARING 10.25
SHAFT THROW 1.5

2020 LIPPMANN J3055 JAW CRUSHER

2020 TELESTACK TC-621R 21M TRACKED RADIAL STOCKPILE CONVEYOR

2021 TRICON T516 TRACKED TROMMEL

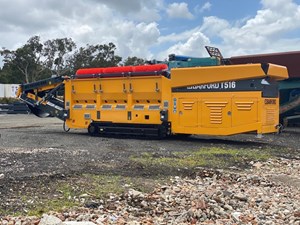

The Tricon T516 Trommel Screen is the latest in a series of mobile screening products with quality and affordability in mind. The TR516 is one of the most popular trommel screens on the market.
Quick and easy to transport, the TR516 is robust and easy to use ensuring optimum levels of performance every time. The TR516 can be used to process such materials as soil, compost, skip fines, quarry overburden, shredded MSW, palm kernel and incinerator ash.
* 16' (4.88m) x 5' (1.53m) Drum
* Full Length Brush Drum Cleaner
* Variable Screening Angle
* Cat C4.4 Engine
* 3.8m3 Hopper Capacity
* Remote Control Movement
* 12mm Screen Aperture
* Return Roller Guarding
* Reflective Tape
* Lanyards
* Machine weight: 14,000kg

2021 TRICON ENVIRONMENTAL T516 TRACKED TROMMEL

NEW & USED EQUIPMENT AVAILABLE NOW

The M413 3 Split Track Trommel is ideal for screening from light material to recycling demolition waste. This machine can also operate in the quarry, cleaning ...

MDS M413 TRACKED TROMMEL

NEW MODEL | Track Mounted Pugmill | Cat C4.4 engine | 300TPH. The Phoenix Pugmill enables users to produce their own material for road pavements including cement treated and or lime stabilised pavement materials, wherever they are

2023 TRICON ENVIRONMENTAL PHOENIX TRACK MOUNTED PUGMILL
