TRICON MINING EQUIPMENT PTY LTD

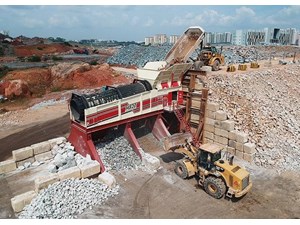

The Terex MDS M413 Mobile Tracked Heavy Duty Trommel ideal for screening from light material to recycling demolition waste.

IN STOCK & AVAILABLE NOW

TEREX MDS M413 TRACKED HEAVY DUTY ROCK TROMMEL

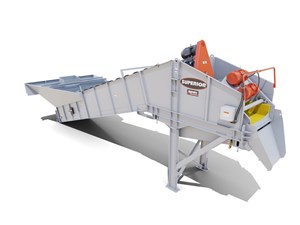

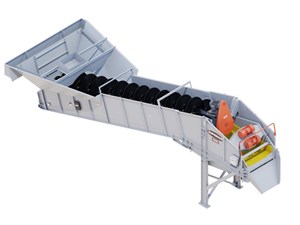

The Aggredry Dewatering Washer, a combination wet screw and dewatering screen, can be used anywhere a fine material washer might be used. However, the added benefits pay back your investment in a v...

2023 SUPERIOR INDUSTRIES AGGREDRY® DEWATERING WASHER 36"

Self-Cleaning Magnet | CORE 1500 D+ | Single Pole | Hydraulic | 1500mm x 1000mm Magnet

2020 CONVEYORTEK SELF-CLEANING MAGNET CORE 1500 D+ | SINGLE POLE | HYDRAULIC | 1500MM X 1000MM

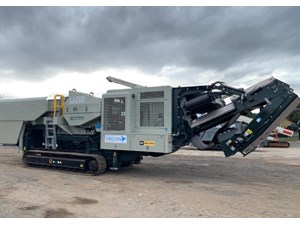

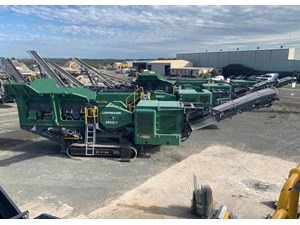

The 1060j is designed to maximize output of high quality material, with a heavy duty build and high quality wear parts and components to minimize downtime.

IN STOCK & AVAILABLE NOW

LIPPMANN 1060J MOBILE JAW CRUSHER

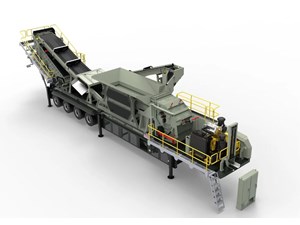

LIPPMANN J3055 JAW CRUSHER - FIXED JAW CRUSHING MACHINE
Lippmann designed its new 3055 jaw crusher as a lighter-weight, contractor-friendly crushing solution that doesnt sacrifice productivity and reliability. The Lippmann 3055 gives customers a durable crusher with added focus on portability, serviceability, and safety, making it an excellent addition to any rental fleet.
PRODUCT FEATURES
Fabricated and stress relieved frame
One-piece, cast steel swing jaw
Dual pick points for swing jaw lifting
Swing jaw servicing cylinder to move swing jaw forward
Taper roller swing jaw bearings
Spherical roller frame bearings
Grease lubrication
Universal, fully-grooved flywheels
Dual wedge with hydraulic assist CSS adjustment
Automatically maintained hydraulic assist tension
rod adjustment
Jaw die ignite device to eliminate manganese welding
Bolt-in, replaceable toe protector/die wedge
Cast manganese die extensions
Cast manganese cheek plates
Ball and socket type toggle bearings
Single piece toggle bearing/block
Bolted wedge swing jaw toggle bearing retention
Spring base cutout for ease of install and tension
rod maintenance
PRODUCT SPECIFICATIONS
FEED OPENING 30X55
ELECTRIC HP 200
FLYWHEEL SPEED 250 RPM
DISCHARGE OPENING 3-7
WEIGHT (LBS.) 57,500
FLYWHEEL DIAMETER 54
SWING DIE LENGTH 65
STATIONARY DIE LENGTH 58.5
SHAFT DIA. CENTER 13.625
SHAFT DIA. SWING BEARING 11.8
SHAFT DIA. FRAME BEARING 10.25
SHAFT THROW 1.5

2020 LIPPMANN J3055 JAW CRUSHER

USED - RUBBLE MASTER RM 90GO! IMPACT CRUSHER

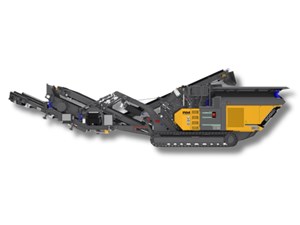

The RM 90GO! is a mobile impact crusher that provides the best performance in its class without sacrificing mobility. This high-performance machine can tackle the toughest crushing and recycling applications and still provide operators with simple controls and fast setup time. RUBBLE MASTERs diesel-electric drive ensures low maintenance and fuel cost over time resulting in a lower cost per ton.
* Throughput up to 250 t/h, depending on material
* Feed material size up to an edge length of 750 mm
* Feed opening 950 x 700 mm
* Crusher unit: RM crusher with 2 or 4 hammers, 3 rotor speeds
* Feed Unit: Asymmetric 3.3 m3 vibro-channel with 2 vibration motors (3.1 kW each)
* Loading Height = 3000 mm
* Feed Intake: 2980 x 2000 mm
* Main discharge belt = 3.35m Height, 1000mm Wide Belt
* Tracked & Fully Mobile
* Weight: 29,000 kg

Give team Tricon Environmental a call, or complete and submit the enquiry form.

RUBBLEMASTER RM 90GO! MOBILE IMPACT CRUSHER

TC 418X MOBILE STOCKPILE STACKER CONVEYOR
The TC 418X track-mounted conveyor is a track-mounted fully mobile conveyor designed to work at production rates of up to 400tph. As mobile crushers and screens constantly get larger with increased throughput's, transport restrictions have not allowed for their on board conveyors to increase in size and length to cope with higher tonnages. Track conveyors fulfill this need by providing much larger stockpile capacity and at the same time improve plant mobility by removing material from the processing equipment.
Main Conveyor Length (Drum Centres): 18m 60
Machine working Length (23º) 17m 55 3
Discharge height (23º) 7.9m 25 9"
Feed in height (Lowest Position) 1.6m 5 1
Feed in height (Highest Position) 2.5m 8 2"
Operating Width 2.2m 7 3"
Stockpile capacity at 23º 1,235 Tonnes 1,360 Ton
Stockpile capacity at 23º 770 m3 1,100 yd3

2020 TELESTACK TC-418X 18M MOBILE STOCKPILE STACKER CONVEYOR

2020 TELESTACK HF520 HOPPER FEEDER

USED | Ex NSW | Excellent condition | Manufacturer's Warranty

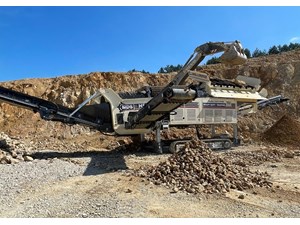

Twin Deck Reclaimer / Scalping Screen | Mobile Track Mounted

2024 LIPPMANN LR 516 HEAVY DUTY 16X5 SCALPING SCREEN WITH 1900H

5032HD WHEELED ELECTRIC STACKER CONVEYOR - 15M

2020 TRICON 5032HD WHEELED ELECTRIC STACKER CONVEYOR - 18M

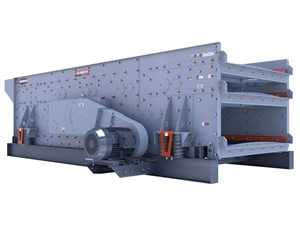

Superior's vibratory horizontal screens are designed with satisfied owners in mind. That means every inch is consistently under investigation for improvement opportunities.

Repeatable quality is...

SUPERIOR INDUSTRIES GUARDIAN HORIZONTAL (6X20) 3 DECK SCREEN

Find Screening AND Crushing For Sale or Hire. Browse 140 Screening AND Crushing listings from TRICON MINING EQUIPMENT PTY LTD.

New & Used Screening AND Crushing For Sale or Hire in Australia

TRICON MINING EQUIPMENT PTY LTD

Sale Price

TEREX MDS M413 TRACKED HEAVY DUTY ROCK TROMMEL

2023 SUPERIOR INDUSTRIES AGGREDRY® DEWATERING WASHER 36"

2020 CONVEYORTEK SELF-CLEANING MAGNET CORE 1500 D+ | SINGLE POLE | HYDRAULIC | 1500MM X 1000MM

LIPPMANN 1060J MOBILE JAW CRUSHER

2020 LIPPMANN J3055 JAW CRUSHER

RUBBLEMASTER RM 90GO! MOBILE IMPACT CRUSHER

2020 TELESTACK TC-418X 18M MOBILE STOCKPILE STACKER CONVEYOR

2020 TELESTACK HF520 HOPPER FEEDER

2024 LIPPMANN LR 516 HEAVY DUTY 16X5 SCALPING SCREEN WITH 1900H

2020 TRICON 5032HD WHEELED ELECTRIC STACKER CONVEYOR - 18M

2020 TELESTACK TC-418X 18M MOBILE STOCKPILE STACKER CONVEYOR

SUPERIOR INDUSTRIES GUARDIAN HORIZONTAL (6X20) 3 DECK SCREEN
