TRICON MINING EQUIPMENT PTY LTD

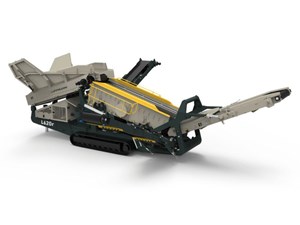

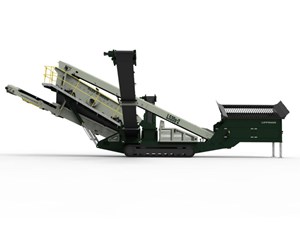

For high production screening, the Lippmann finishing product screens deliver high quality results across multiple products. Available in double deck and triple deck configurations, the innovative ...

LIPPMANN L520S 2 FINISHING PRODUCT SCREENER

TELESTACK TC-420X - 20M MOBILE TRACKED STOCKPILE CONVEYOR
The Telestack TC-420X stacker is a track-mounted fully mobile conveyor designed to work at production rates of up to 400 tonnes per hour. As mobile crushers and screens constantly get larger with increased throughputs, transport restrictions have not allowed for their onboard conveyors to increase in size and length to cope with higher tonnages. Track conveyors fulfil this need by providing much larger stockpile capacity and at the same time improve plant mobility by removing material from the processing equipment.
TECHNICAL INFORMATION
Main Conveyor Length 20m (65ft)
Conveyor Belt Width 1050mm (42")
Feedboot Width 2m
Feedboot Length 2.3m
TC-420X STACKER CONVEYOR FEATURES
+ Engine protection shutdown system
+ Maximum lump feed size of up to 75mm (3")
+ High throughput of up to 400 tph (440 Ton / hr)
+ Folding head and tail section for ease of transport
+ Front and rear adjustable telescopic to obtain desired discharge or feed-in height
+ Maximum distance between tracks and head drum, for optimum stockpiling capacity
+ Counterweight built into feed boot area to give integral strength and stability in working position.
TC-420X STACKER CONVEYOR APPLICATIONS
+ Ship and truck loading.
+ Stockpiling from secondary crushers, screens and shredders.
+ Working as part of a mobile system on short to medium term projects.
+ Stockpiling construction and demolition waste, top soil, coal, grain etc.
+ Receiving crushed material and stockpiling safely over a quarry face/bench.
+ Stockpiling crushed stone, sand and gravel, mineral ores, mulch, woodchip/biomass.

2020 TELESTACK TC-420X 20M MOBILE STOCKPILE STACKER CONVEYOR

USED 2016 POWERSCREEN MAXTRAK 1000 CONE CRUSHER   3100 hours / full rebuild on Cat C9 engine 23/1/2023

2016 POWERSCREEN MAXTRAK 1000 MOBILE CONE CRUSHER

The Terex MDS M515 Heavy Duty Trommel, the flagship model in the Terex MDS range. It excels at crafting RipRap and reclaiming rocks entangled with clay and other adhesive materials. The updated design incorporates new elements that enhance transportation, accessibility, and stockpile capacities.
FEATURES
- Oversized Conveyor
- Heavy Duty Drum
- Hydraulic Push Feeder
- All Terrain Tracks
- Diesel CAT engine
SPECIFICATIONS
Engine: CAT 4.4 96kW (128.7 HP)
Weight: 52,800kg
Output Potential: 350 - 500 tonnes per hour
Transport Dimensions: Length 17.3m | Width 3.0m, with grid 3.2m| Height 3.6m, with grid 4.3m
Working Dimensions: Length 21.36m | Width 7.54m | Height 5.1m

TEREX MDS M515 HEAVY DUTY TRACKED TROMMEL

2022 RUBBLE MASTER RM120X HYBRID (DIESEL / ELECTRIC) MOBILE CRUSHER C/W SCREEN BOX & OVERSIZE RECIRC & STOCKPILE.
The RM Group once again sets new standards in user-friendliness with RM NEXT. As the first NEXT philosophy crusher, the RM 120X combines maximum safety with maximum performance and flexibility. Using RM Operations Assist and RM GO! SMART, the crusher interacts with the machine operator who is able to see the status of the machine from the loader cab. The Performance Indicator also enables maximum efficiency in processing without leaving the cab.
* 4m3 One Piece Hopper C/w 2 x Vibration Motors
* 1160x820 4 bar rotor
* 3 rotor speed settings
* Detachable Screen Box for Easy Transport and Servicing
* Large 5.5m2 Screen Surface (3,700 x 1,480mm)
* Fitted with 28mm Screen Mesh Media
* Integrated Hydraulic Blow Bar Lifter
* Centralised Machine Control C/w Compartment Lighting
* Wireless Remote Control
* Self Cleaning, Magnetic Separator
* Water Pump for Dust Suppression
* Up to 350 Tonne / Hour Output Potential (product dependant)
* Feed Material Size Max 950mm (product dependant)
* John Deer Tier 3, Constant Speed 286KW
* Tracked and Fully Mobile
* CSS Range: 20 - 160mm
* Intuitive 'Push Button' Control System
* Hydraulic Overload Protection
* 1,200mm wide discharge belt
* 3,600mm Discharge Height
* Tracked and Fully Mobile
* Weights: RM120X = 37,600kg, Screen Assy. = 6,400kg
* E-stops
* Fire Extinguisher

Give team Tricon a call, or complete and submit the enquiry form.
For more details and brochures head to our website https://www.triconenvironmental.com.au/

RUBBLEMASTER RM 120X MOBILE IMPACT CRUSHER

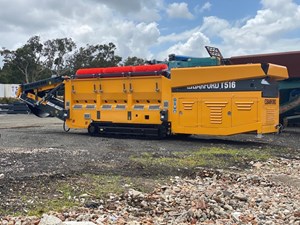

2021 TRICON T516 TRACKED TROMMEL
The Tricon T516 Trommel Screen is the latest in a series of mobile screening products with quality and affordability in mind. The TR516 is one of the most popular trommel screens on the market.
Quick and easy to transport, the TR516 is robust and easy to use ensuring optimum levels of performance every time. The TR516 can be used to process such materials as soil, compost, skip fines, quarry overburden, shredded MSW, palm kernel and incinerator ash.
* 16' (4.88m) x 5' (1.53m) Drum
* Full Length Brush Drum Cleaner
* Variable Screening Angle
* Cat C4.4 Engine
* 3.8m3 Hopper Capacity
* Remote Control Movement
* 12mm Screen Aperture
* Return Roller Guarding
* Reflective Tape
* Lanyards
* Machine weight: 14,000kg

2021 TRICON ENVIRONMENTAL T516 TRACKED TROMMEL

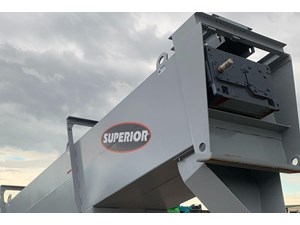

The Aggredry Washer is a combination wet screw and dewatering screen and can be used anywhere a fine screw might be used. The added benefits of dewatering and fines recovery pay back your investmen...

SUPERIOR INDUSTRIES AGGREDRY DEWATERING WASHER 48"

TELESTACK HF-520 HOPPER FEEDER CONVEYOR
The Telestack HF520 Hopper Feeder is a track-mounted fully mobile conveyor designed to work at production rates of up to 500 tonnes per hour. Telestacks hopper feeder range is designed to be loaded directly from wheel loaders, grab cranes, excavators etc.
Hopper Feeders can be used to stockpile material, feed auxiliary equipment, reclaim to other conveyors, directly load ships, trucks, rail wagons etc. Since the hopper feeder is track mounted the unit has excellent mobility on site. Hopper Feeders eliminate double handling of material which reduces overall costs for the operator.
TECHNICAL INFORMATION
Main Conveyor Length - 20m (65ft)
Conveyor Belt Width - 1050mm (42")
Hopper Width - 2.1m
Hopper Length - 4.4m
Feed-in Height - 2.9m
Hopper Capacity - 7m³
Stockpile capacity at 24º = 1,214m³
HF-520 HOPPER FEEDER FEATURES
* Production rates of up to 800tph (upgraded)
* Reduces fuel cost by up to 75%.
* Reduces operating cost by up to 70%
* Heavy duty design and manufacture.
* Unrivalled mobility and flexibility when in operation.
* Increased safety as no need to stockpile with wheel loaders.
* Reduces screener idle time increasing production.
* Reduces face excavator idle time increasing production.
* The range of hopper capacities depending on application and production rate.
* The hydraulic folding head section allowing for compact road transportation.
* Can be packed into 40ft containers for easy, cost-effective transport around the globe.
* Reducing loading shovel movements which reduce operating cost and improves safety.
* High specification machine designed for ease of maintenance commanding an excellent resale value at project conclusion.

ADDITIONAL INCLUSIONS
* E stops
* Battery isolator
* Fire extinguisher
* 1050mm belt upgrade
* Twin drives on feeder
* Twin drives on main conveyor
* Hot climate package (dual oil coolers)
* 700mm hopper extensions / 12m3 hopper
* Upgrade to 2 x hydro jack legs at rear of hopper

2020 TELESTACK HF-520 20M HOPPER FEEDER / FEED LOADER CONVEYOR

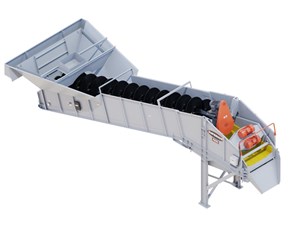

NEW 2021 model - ALLIANCE® LOW WATER WASHER  IN STOCK!
Available ex works Tomago.

2021 SUPERIOR INDUSTRIES ALLIANCE® LOW WATER WASHER

The Terex MDS M413 Mobile Tracked Heavy Duty Trommel ideal for screening from light material to recycling demolition waste.

IN STOCK & AVAILABLE NOW

TEREX MDS M413 TRACKED HEAVY DUTY ROCK TROMMEL

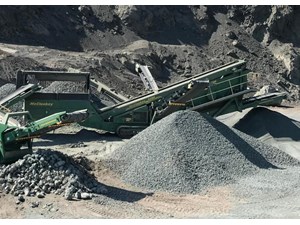

The S190 pushes industry performance standards and leads the competition with the most advanced and innovative 20' x 5' mobile vibratory screening plant in production today.

An adjustable screen...

MCCLOSKEY S190 SCREENER

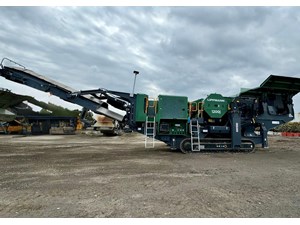

The 1060j is designed to maximize output of high quality material, with a heavy duty build and high quality wear parts and components to minimize downtime.

IN STOCK & AVAILABLE NOW

LIPPMANN 1060J MOBILE JAW CRUSHER
